ZZ3256V464HF1

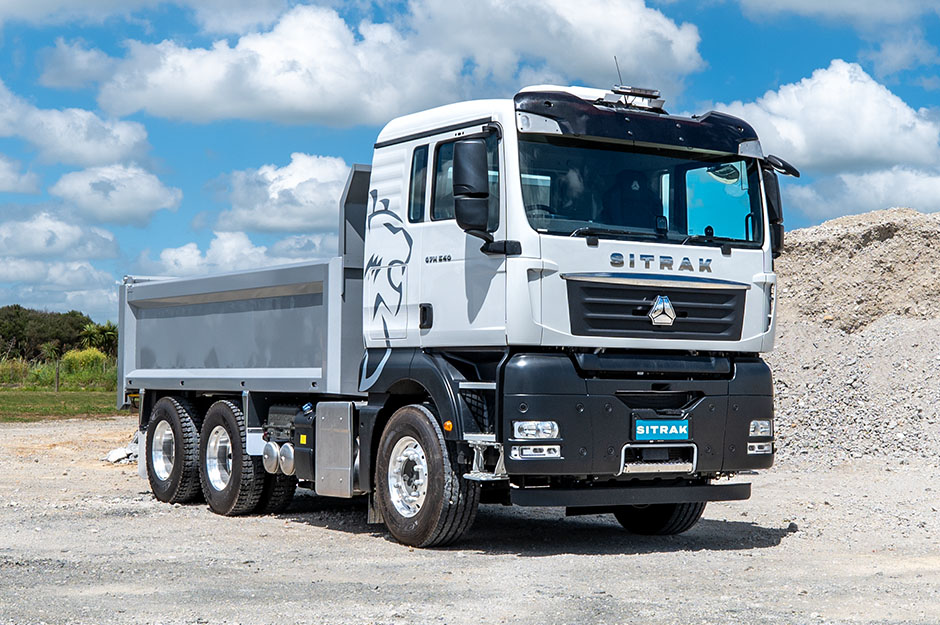

The new G7S offers you flexibility configurations to meet your transportation requirements
Reliable MC13.54-61TD engine with 540HP and 2550Nm Torque
12 Speed ZF AMT gearbox

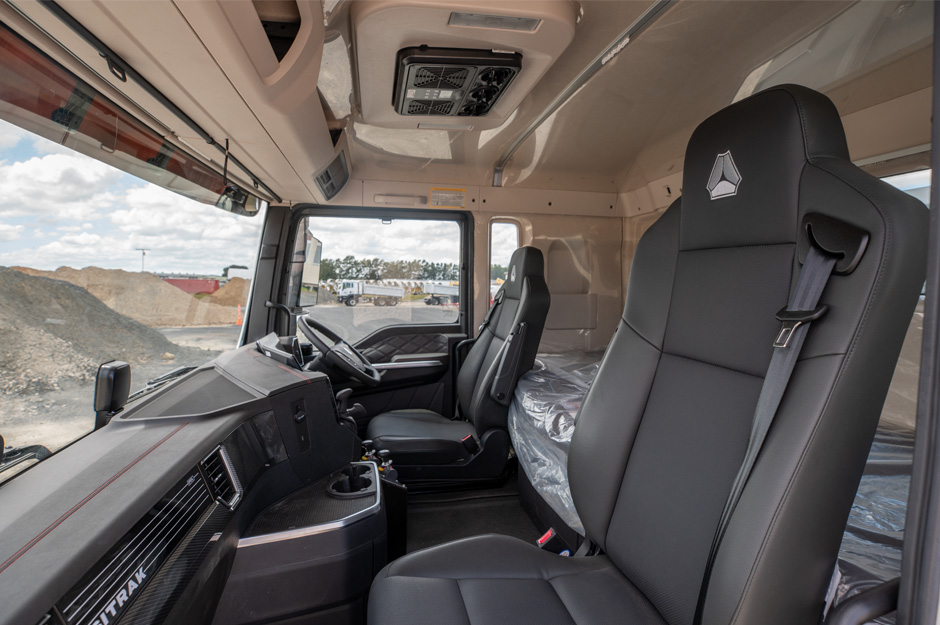

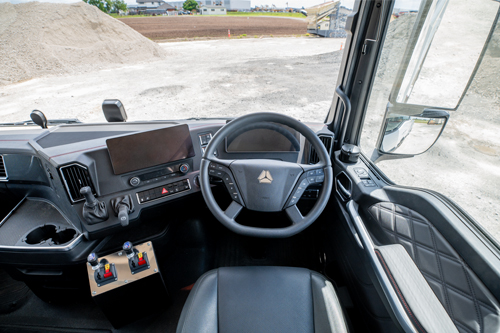

Comfortable cab for operator comfort
Differential locks and cross locks for when the going gets tough
EBS / ACC / AEBS / HAS / FCWS / WABCO Radar / 360-degree surround view
Comfortable cab for operator comfort

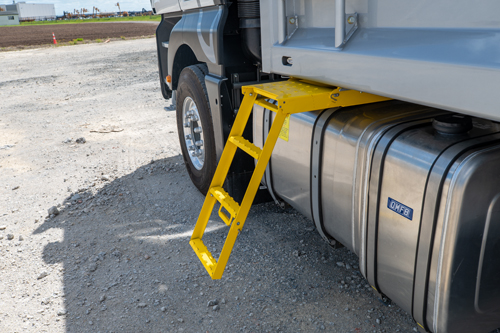

Easy and safe bin access
-

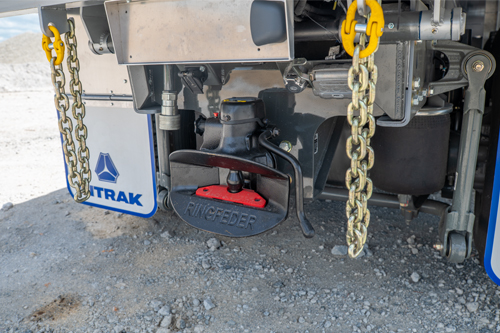

50mm Ringfeder
GVM: 25,000kg
GCM: 75,000kg
Max load of two axles: (Front) 7000kg
Max load of two axles: (Rear) 18,000kg
Max speed: 100km/h
Min turning diameter: 17.8m
Max climb gradient: 25%
Fuel Tank Capacity: 600L
Model: G7S-P
Seats: 2
Cab turning radius: 2807mm
Model: MC13.54-61 TD
Displacement: 12.42L
Power Rating: 540r/min
Max Torque: 2500/1000~1400r/min
Model: ZF 12TX2621TD
Forward gear ratio: 16.688, 12.924, 9.926, 7.688, 5.895, 4.565, 3.655, 2.831, 2.174, 1.684, 1.291, 1.000
Reverse gear ratio: 15.537, 12.033
Model: Ladder framework
Main beam cross-section: 300mm x 80mm x 8mm
Width of frame assembly: (Front) 940mm
Width of frame assembly: (Rear) 850mm
Model: MCY13BES Disc
Redactor ratio: 3.08
Differential Lock: Diff lock + cross lock
Model: VPD71DS Disc
Front suspension model: Non-independence suspension
Front suspension type: 3 Leaf parabolic
Rear suspension model: Air
Rear suspension type: 8 Air bag
Model: Steering wheel
Ratio: 17~20.1
Max pressure of pump: 18,300kPa
Working pressure: 1250kPa
Drive braking type: Dual circuit compressed air brake
Brake power adjust type: EBS, ESC, HSA
Parking brake type: Spring
Circuit type: Dual
Voltage: 24V
Generator power: 2.0kW
Batteries: 2 x 12V / 180Ah
Trailer brakes ABS to rear: Included
Sun visor, side skirts: Included
