ZZ1316N266GF1
Allison 4430P Transmission
Euro 6 Emission Compliant

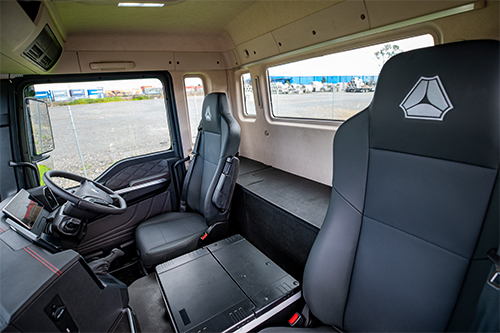

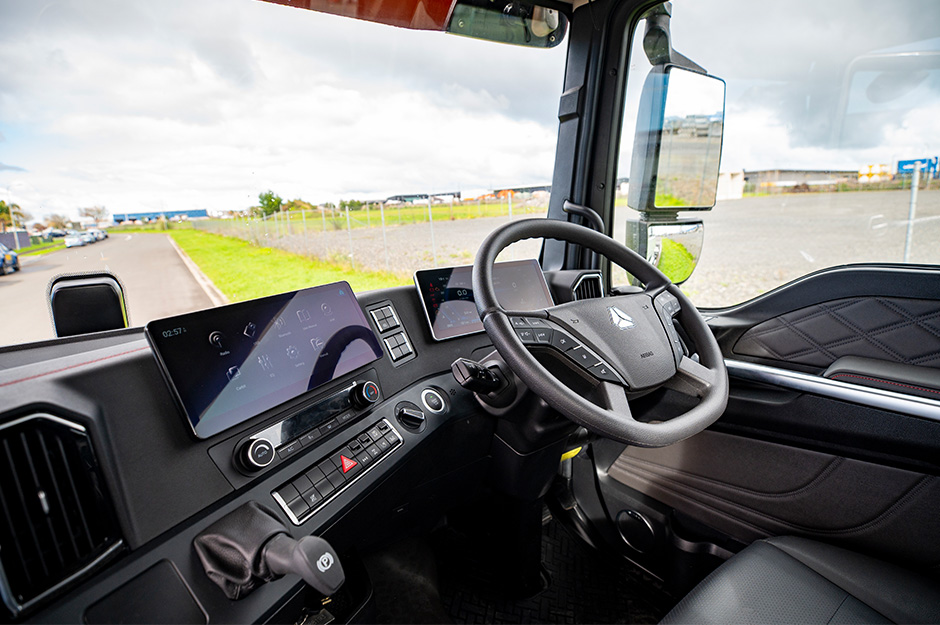

Comfortable cab for operator comfort
Differential locks and cross locks for when the going gets tough
Alloy rim / air tank to reduce tare weight
The new G5S offers you flexibility configurations to meet your transportation requirements
Ready for your custom build
Factory Made Bowl with Wireless Remote.
GVM: 27,500kg
Max load of two axles: (Front) 5500/5500kg
Max load of two axles: (Rear) 16,500kg
Max speed: 100km/h
Min turning diameter: 22.5m
Max climb gradient: 25%
Fuel Tank Capacity: 220L
Model: G5S-M
Seats: 2
Cab turning radius: 2410mm
Model: MC07H.35-61
Displacement: 7.36L
Power Rating: 340HP
Max Torque: 1400 / (1200~1600)
Model: Allison 4430P

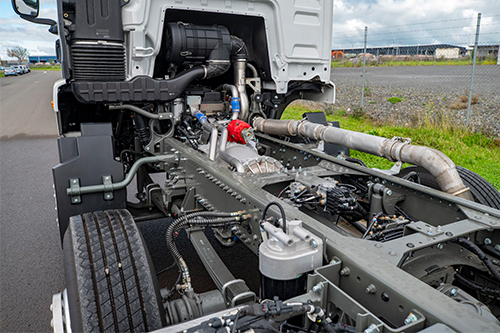

Model: Trapezium frame
Main beam cross-section: 280mm × 80mm × 6mm
Width of frame assembly: (Front) 940mm
Width of frame assembly: (Rear) 850mm
Model: MCY11BES
Redactor ratio: 5.29
Differential Lock: Diff lock
Model: VPD71DS
Model: Ball circle
Ratio: 22.2~26.2:1
Max pressure of pump: 20,000kPa
Working pressure: 1250kPa
Drive braking type: Dual circuit compressed air brake
Brake power adjust type: EBS + ESC + HSA
Parking brake type: Spring stored energy air cut brake
Circuit type: Dual
Voltage: 24V
Generator power: 3.08kW
Batteries: 2 x 12 / 180Ah
