ZZ1256N564GF1R
Reliable MC07H.33-61 engine
Allison 3200 gearbox

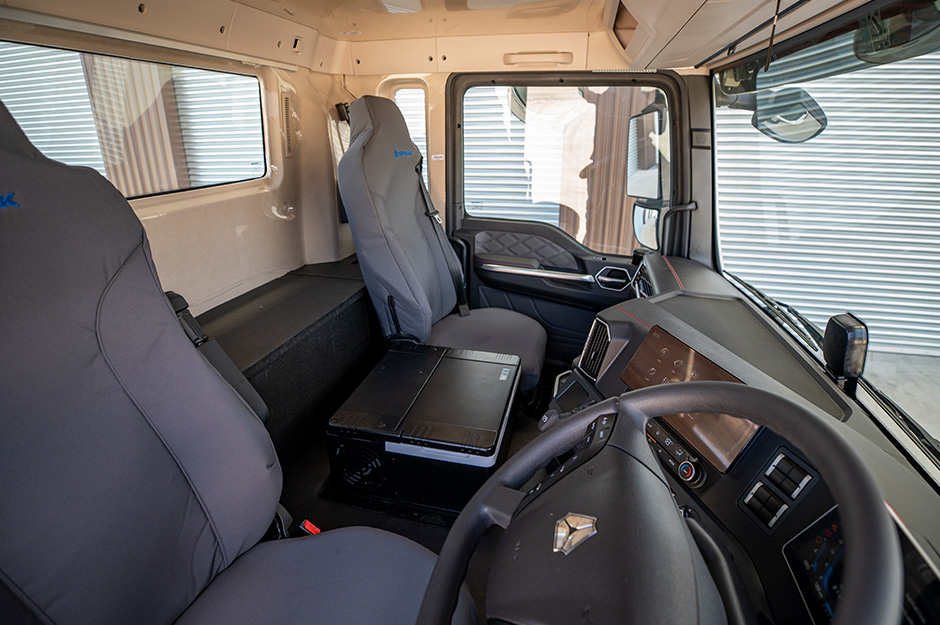

Comfortable cab for operator comfort
Differential locks and cross locks for when the going gets tough

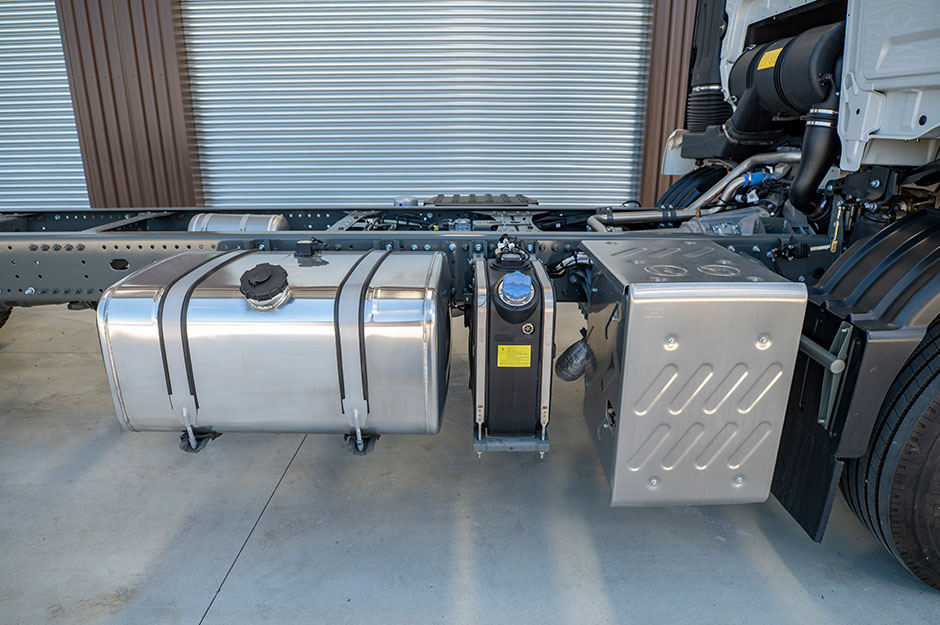

Alloy rim / air tank to reduce tare weight
The new G5S offers you flexibility configurations to meet your transportation requirements

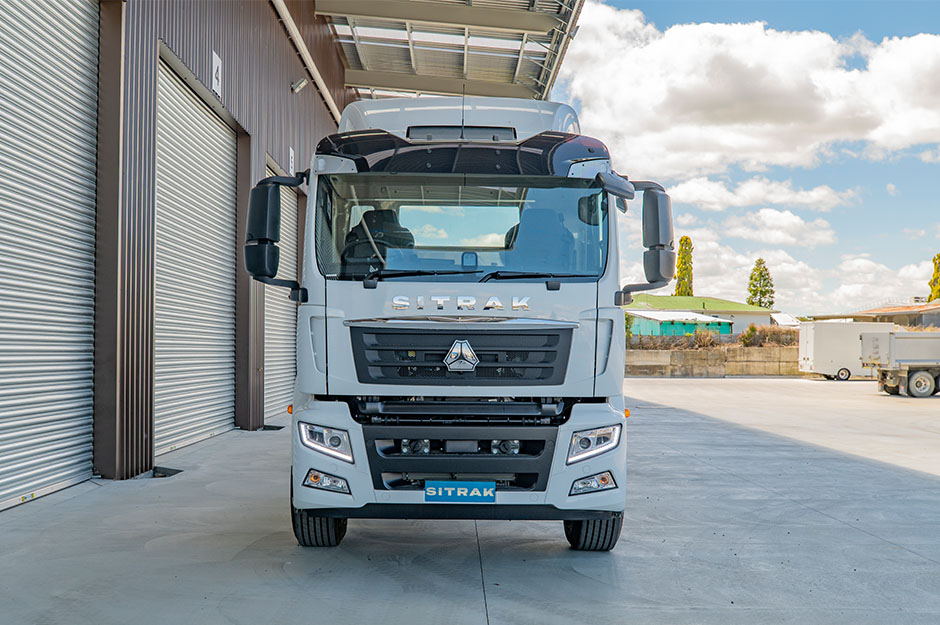

Stylish cab with all the modern comforts
Ready for your custom build.
GVM: 25,000kg
Max load of two axles: (Front) 7000kg
Max load of two axles: (Rear) 18,000kg
Max speed: 100km/h
Min turning diameter: 21.4m
Max climb gradient: 30%
Fuel Tank Capacity: 300L
Model: G5S-M
Seats: 2
Cab turning radius: 2410mm
Model: MC07H.33-61
Displacement: 7.36L
Power Rating: 240/2200
Max Torque: 1322/1200-1700
Model: Allison 3200
Model: Ladder framework
Main beam cross-section: 280mm × 80mm × 8mm
Width of frame assembly: (Front) 965mm
Width of frame assembly: (Rear) 850mm
Model: MCY11BES
Redactor ratio: 5.29
Differential Lock: Diff + cross locks
Model: VPD71DS
Model: Steering wheel
Ratio: 22.2~26.2:1
Max pressure of pump: 20,000kPa
Working pressure: 1250kPa
Drive braking type: Dual circuit compressed air brake
Brake power adjust type: EBS + ESC + HSA
Parking brake type: Spring stored energy air cut brake
Circuit type: Dual
Voltage: 24V
Generator power: 3.0kW
Batteries: 2 x 12 / 180Ah
