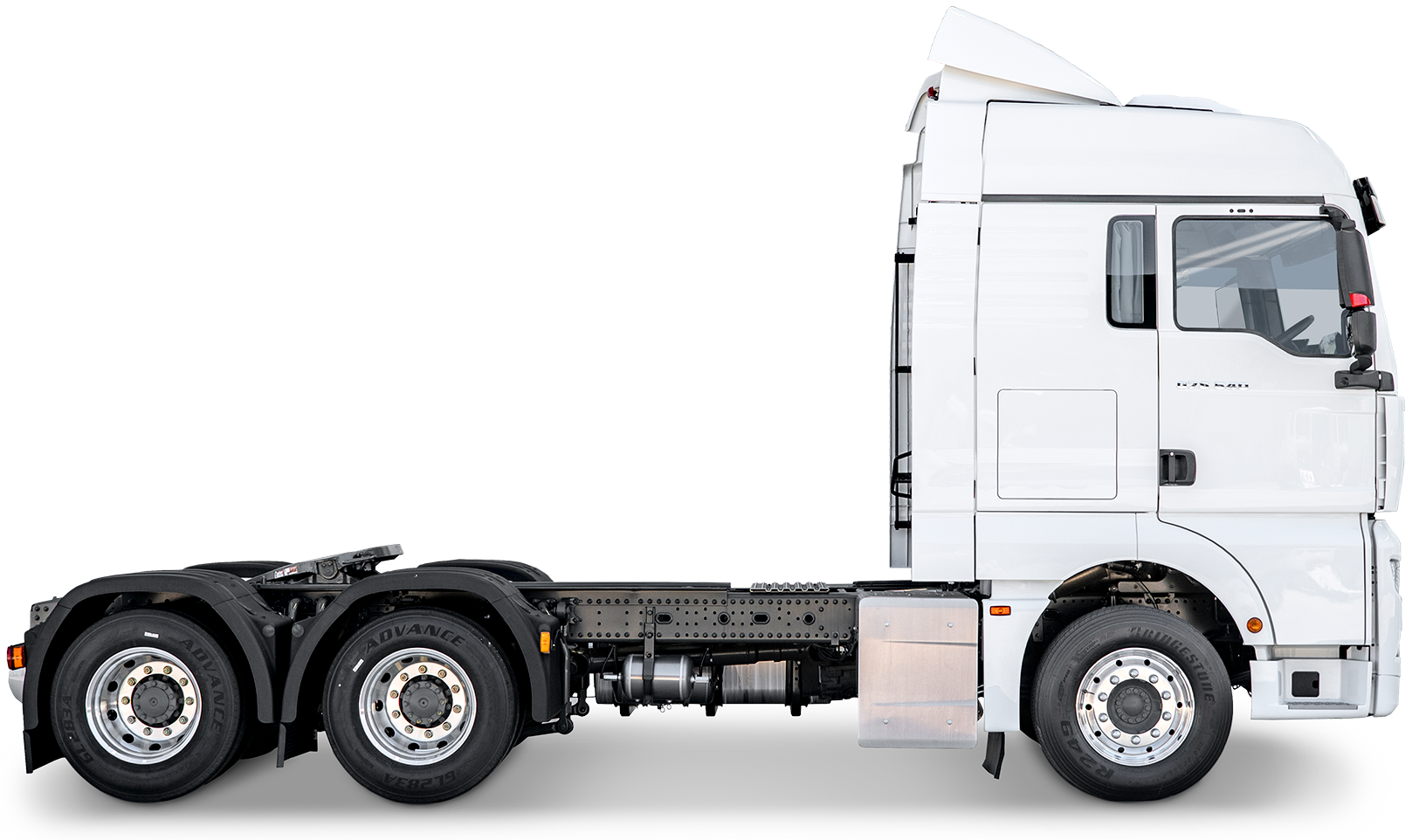

Sitrak G7 6X4 Tractor Side Clearcut

G7 6X4 Tractor

ZZ4256V364HF1RB

The Sitrak G7 6x4 Tractor delivers the perfect balance of power, efficiency, and driver comfort for modern linehaul and general freight operations. With a spacious cab and advanced safety systems including ACC, AEBS and 360° surround view, the G7 offers a premium transport solution with low operating costs and outstanding driver appeal.

2,500Nm Torque
9,240kg Tare Weight
4,300mm Wheelbase
12-Speed ZF AMT

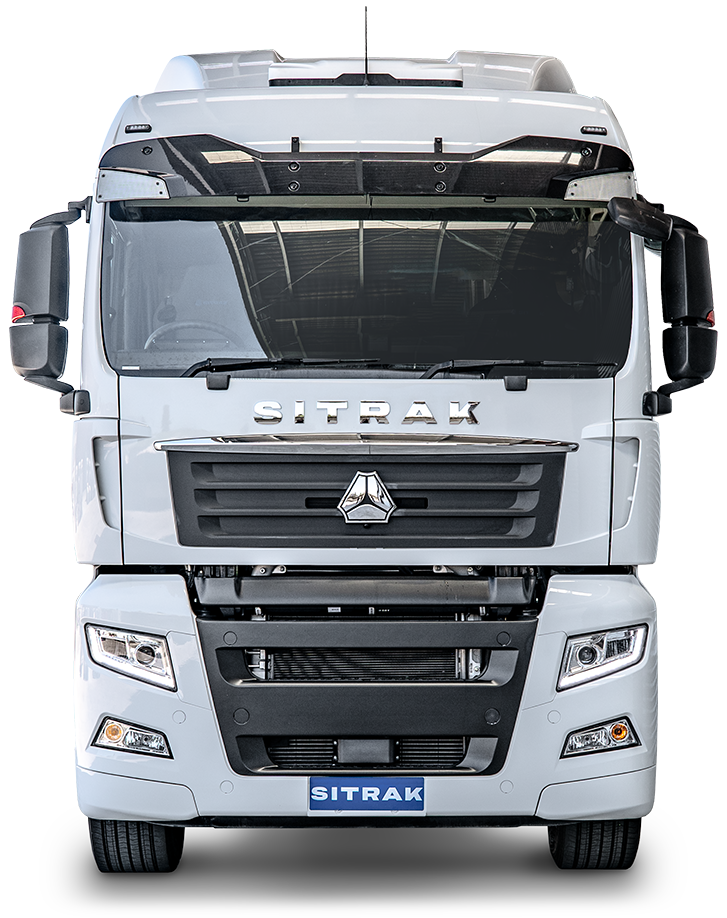

Sitrak G7 6X4 Tractor Front View Clearcut
View full specs

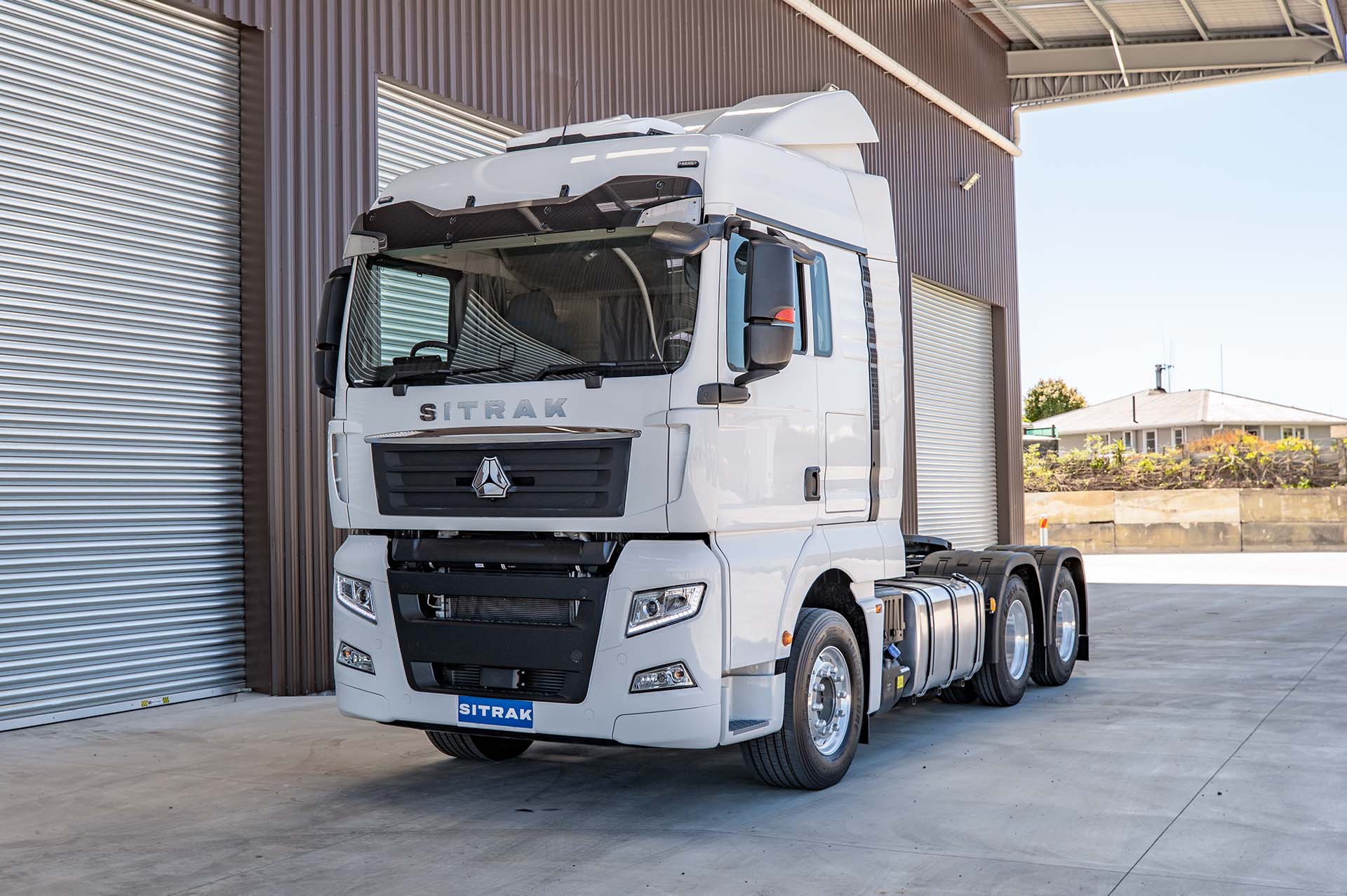

Sitrak G7 6x4 tractor front angle view

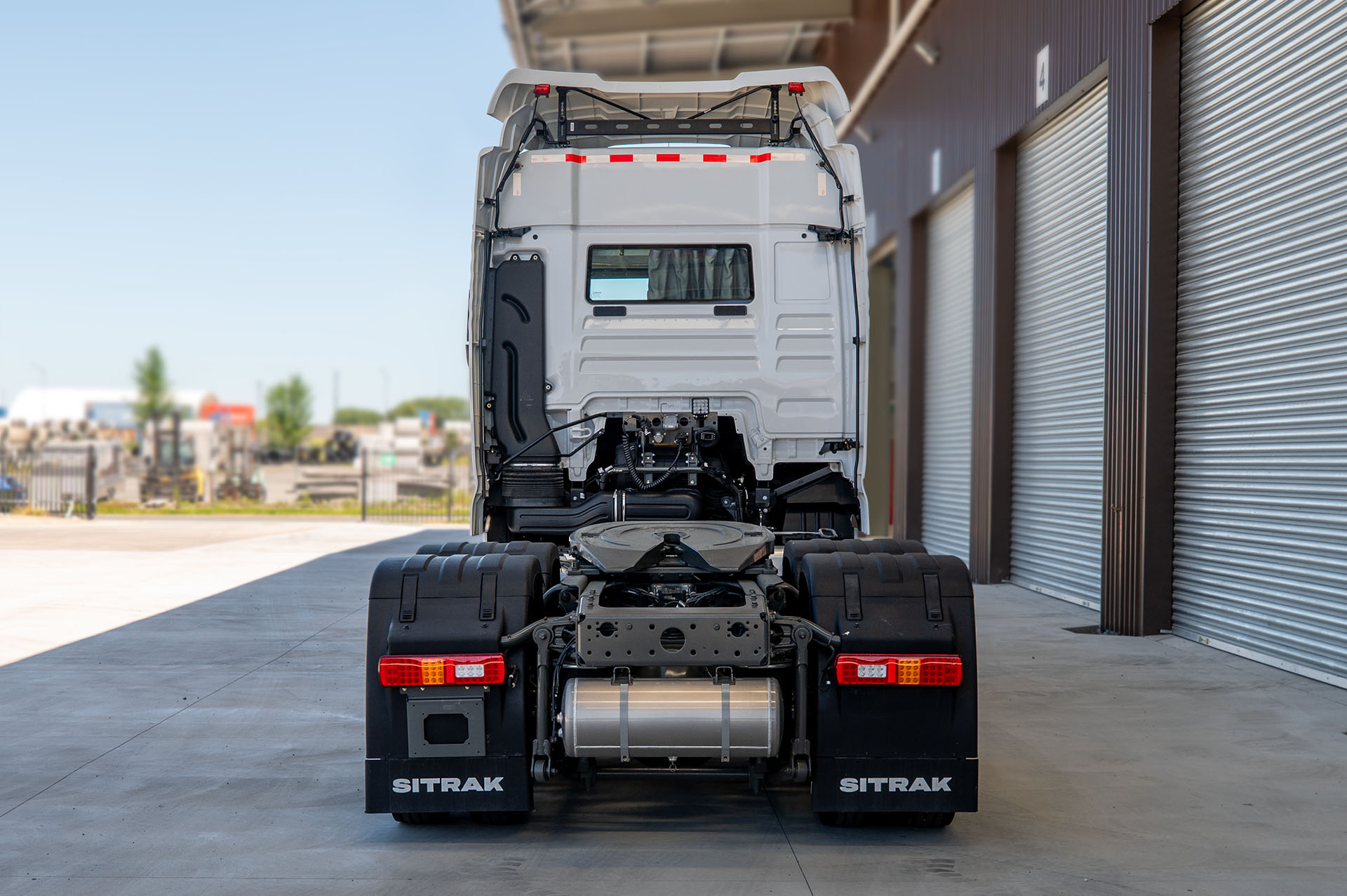

Sitrak G7 6x4 tractor rear view

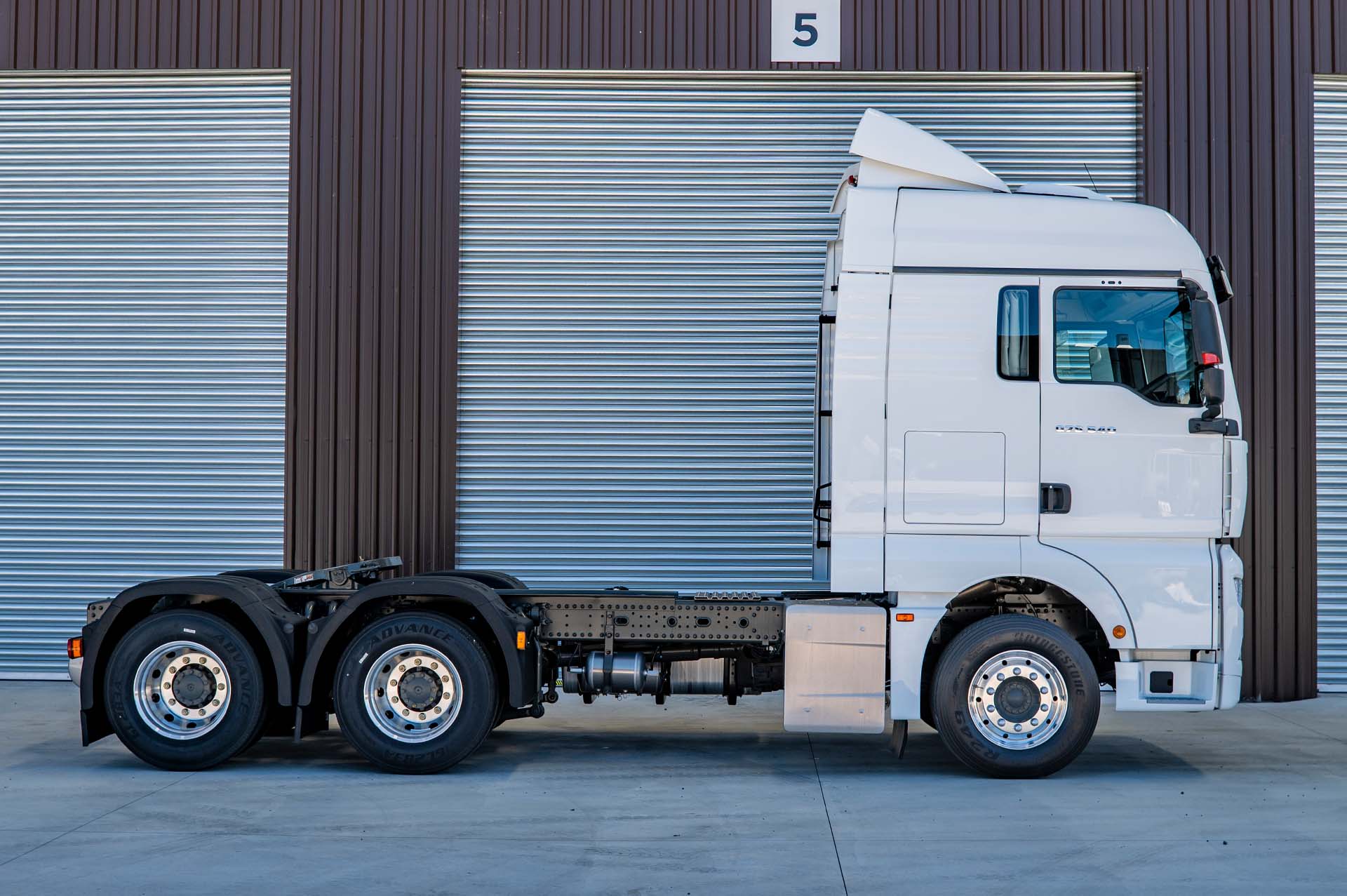

Sitrak G7 6x4 tractor side view
Sitrak G7 6x4 rear image

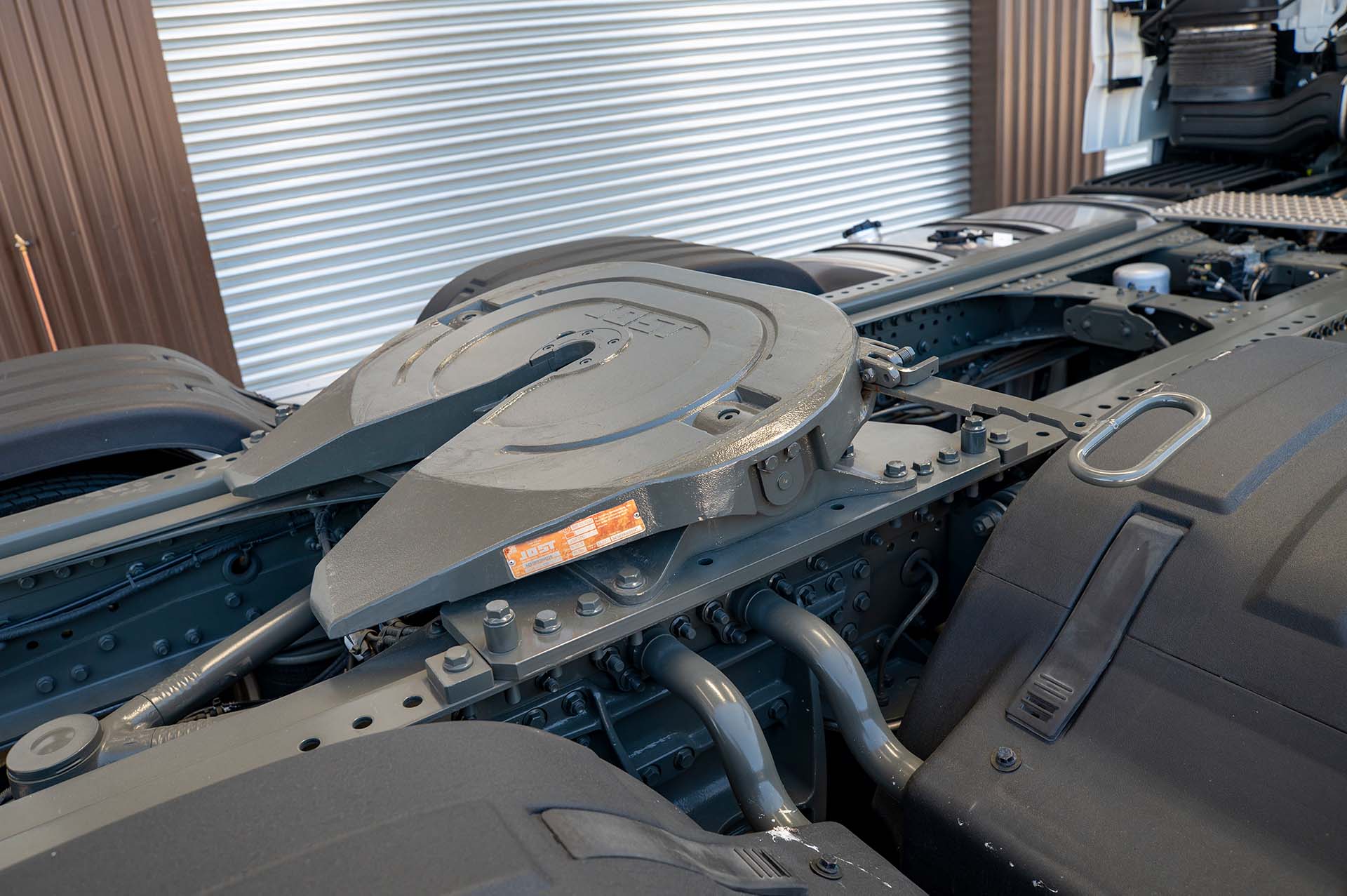

Sitrak G7 Jost 5th Wheel

Explore the modern G7 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the G7 delivers a modern driving environment designed for performance and long-haul comfort.

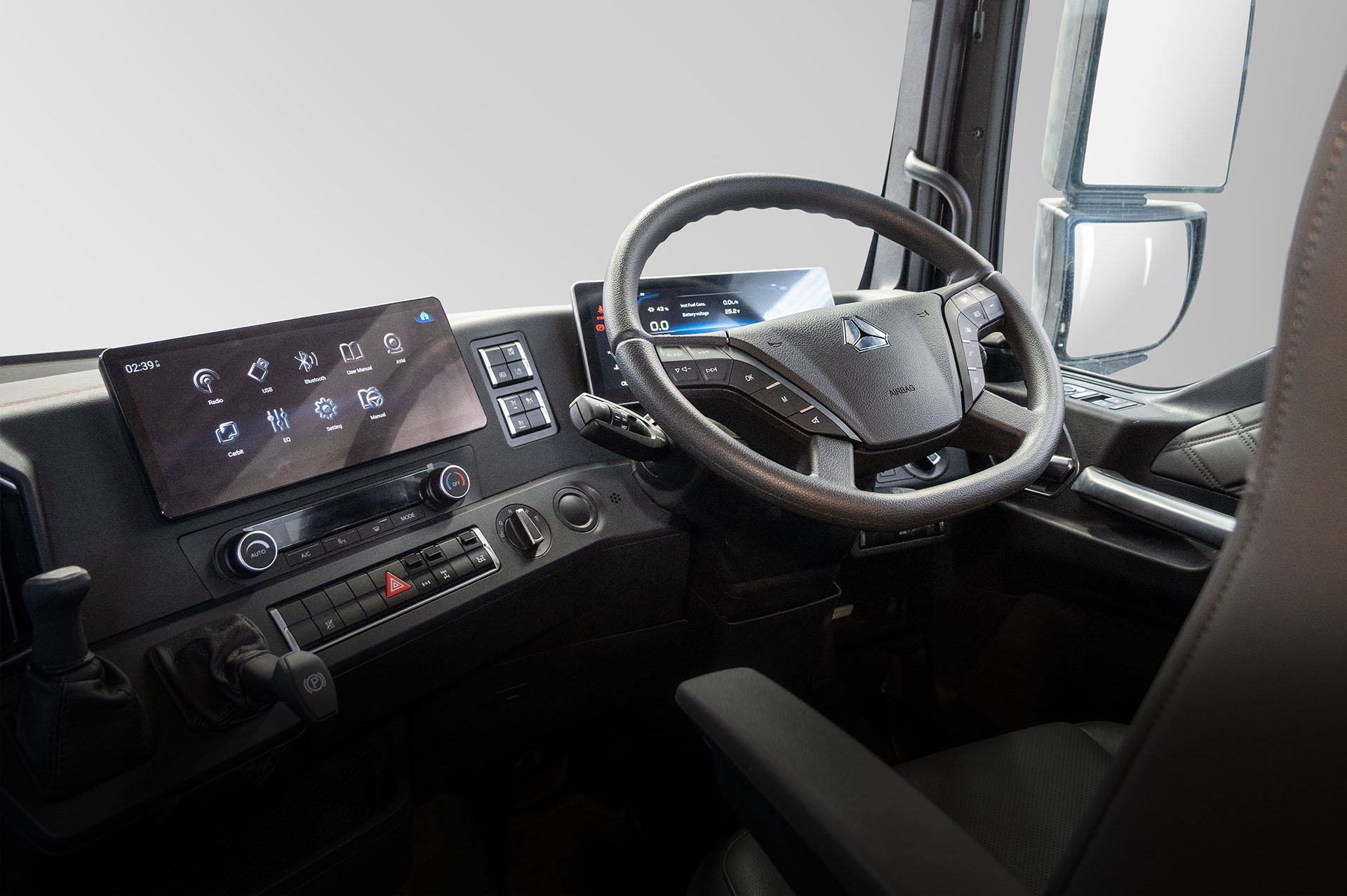

G7 6x4 tractor modern driver workspace

Modern driver's workspace

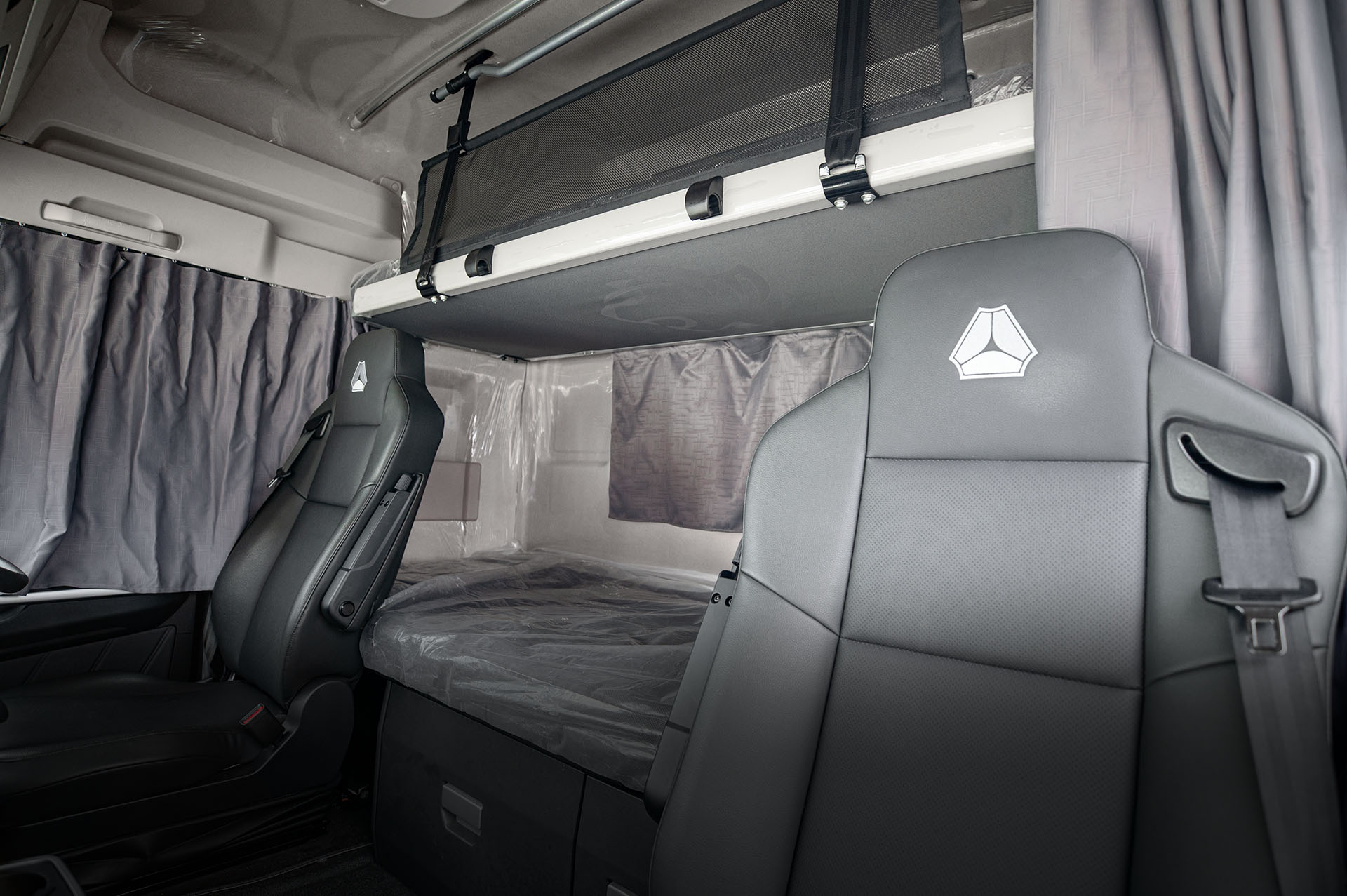

Sitrak G7 6x4 tractor spacious stand-up cab with twin bunks

Spacious stand-up cab with twin bunks

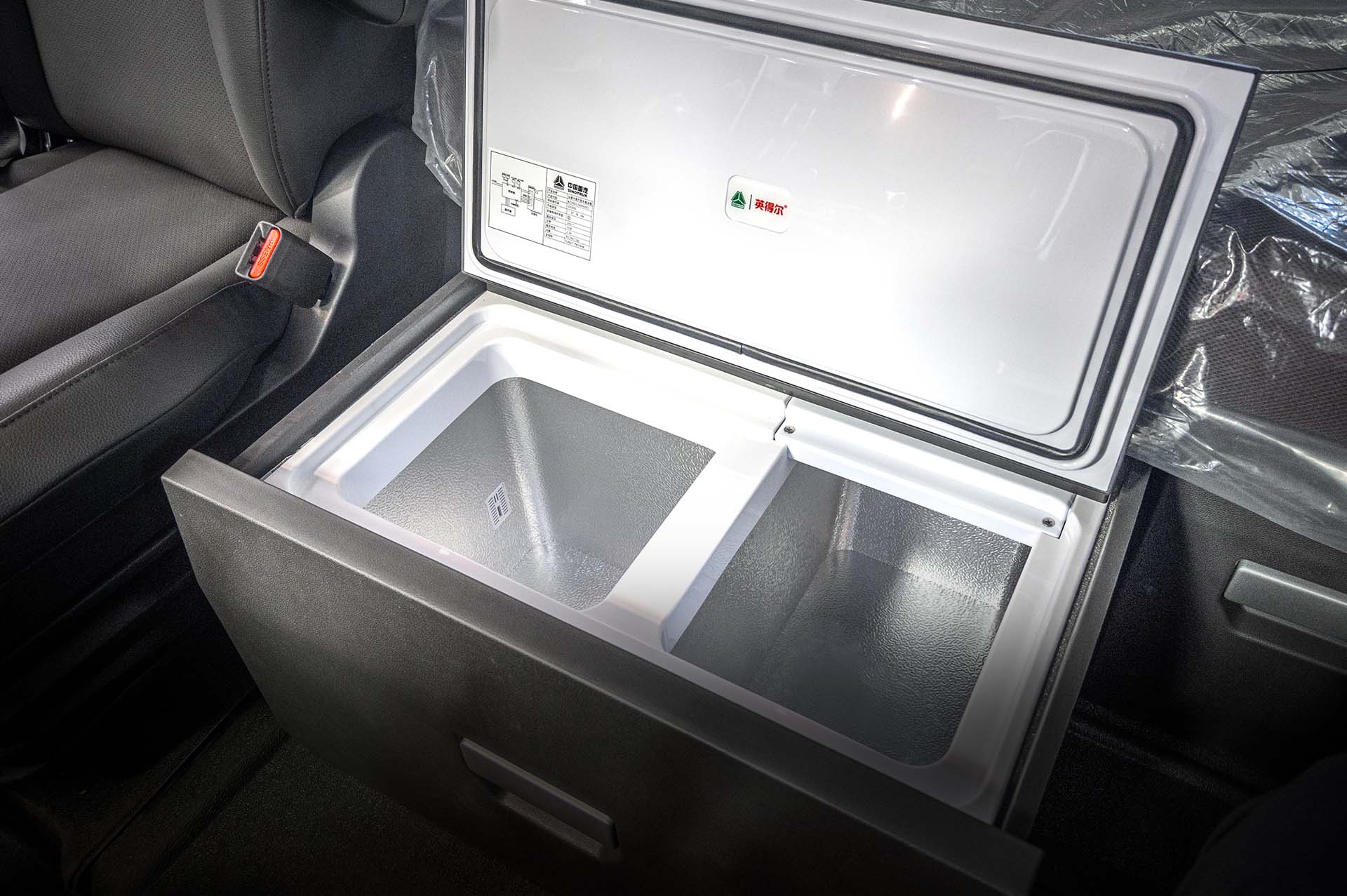

G7 6x4 tractor slide-out 20L refrigerator

Slide-out 20L refrigerator

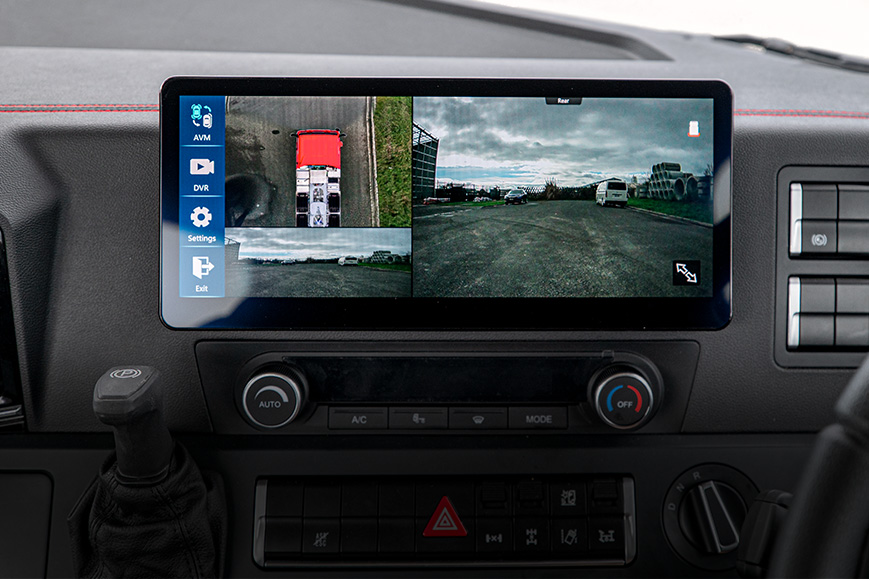

360° surround view camera

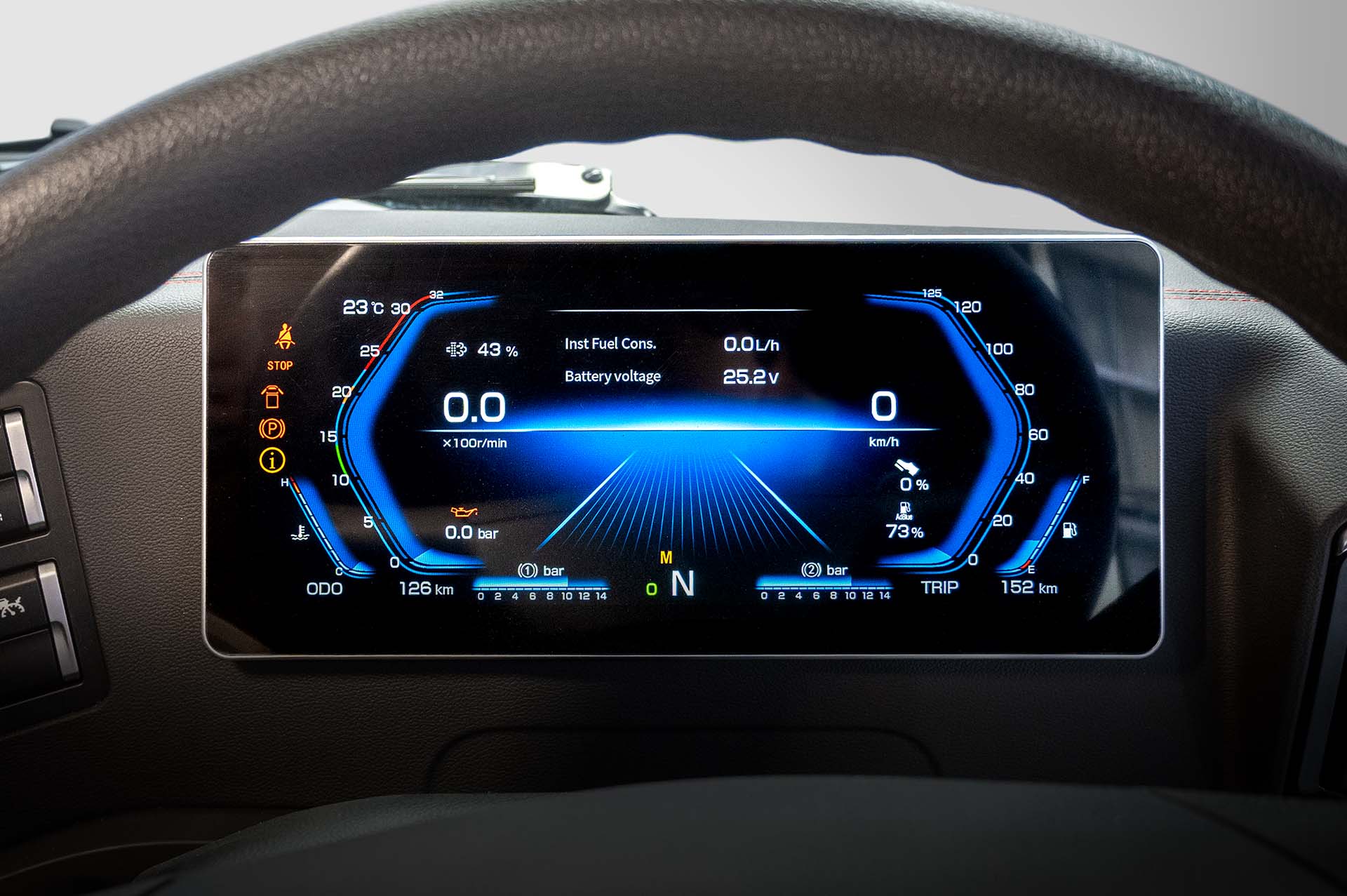

G7 6x4 tractor digital instrument cluster

Digital instrument cluster

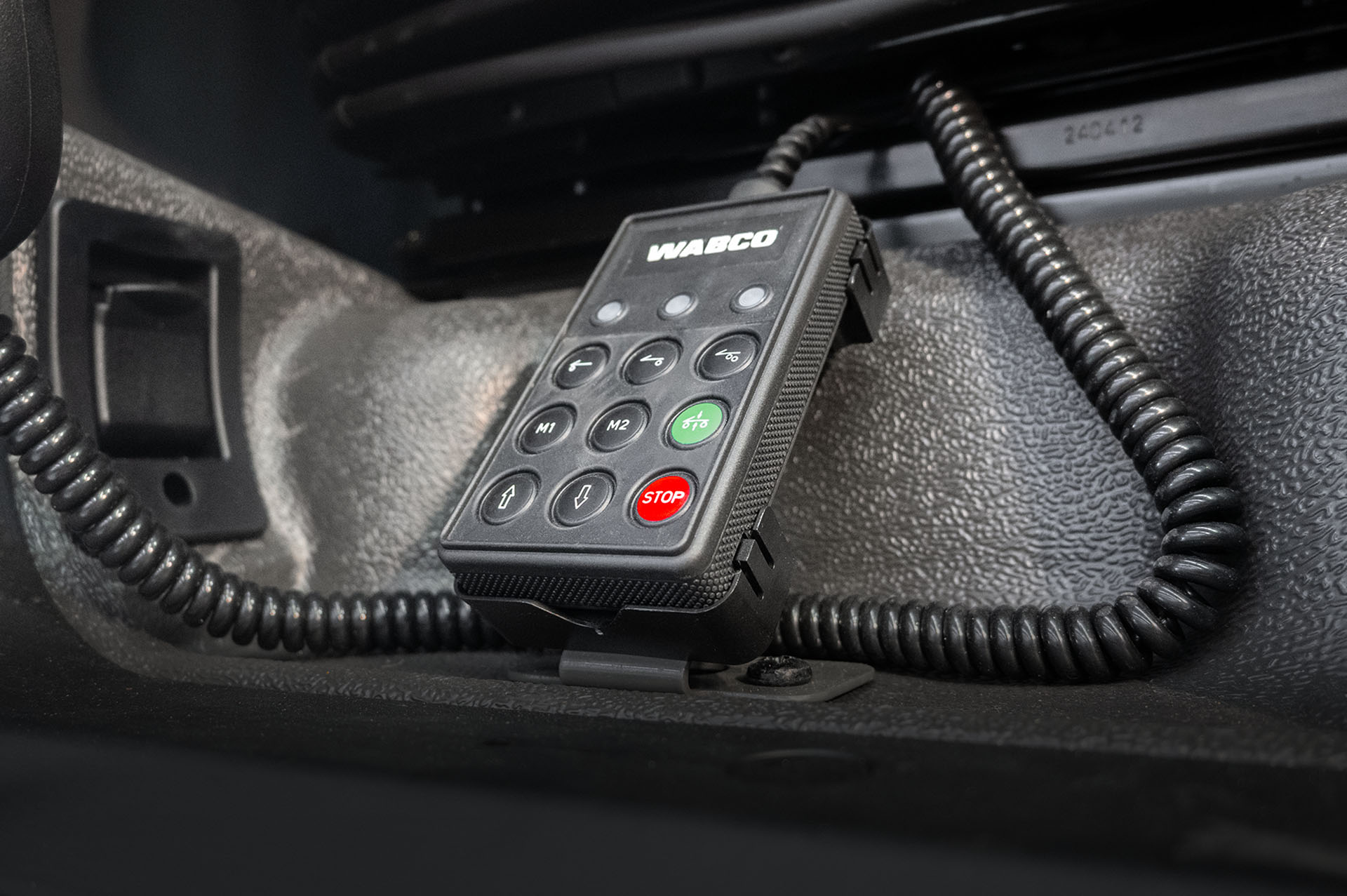

G7 6x4 tractor ECAS remote control unit

ECAS Remote control unit

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort

Truck specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
