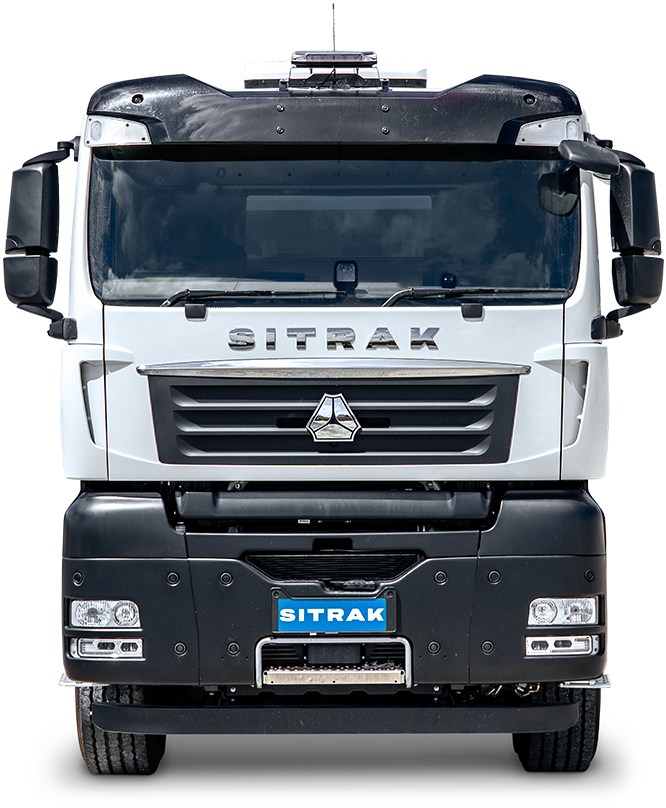

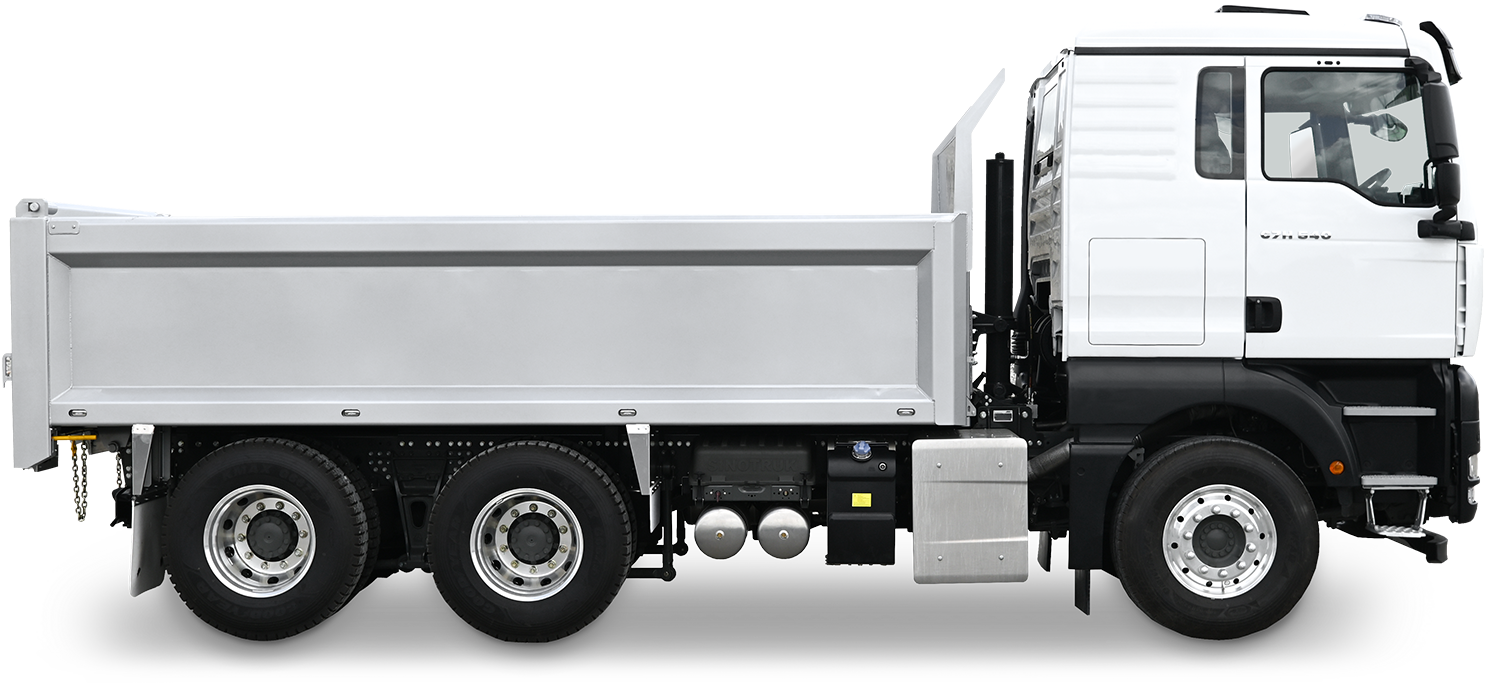

G7 6X4 Tipper

ZZ3256V464HF1

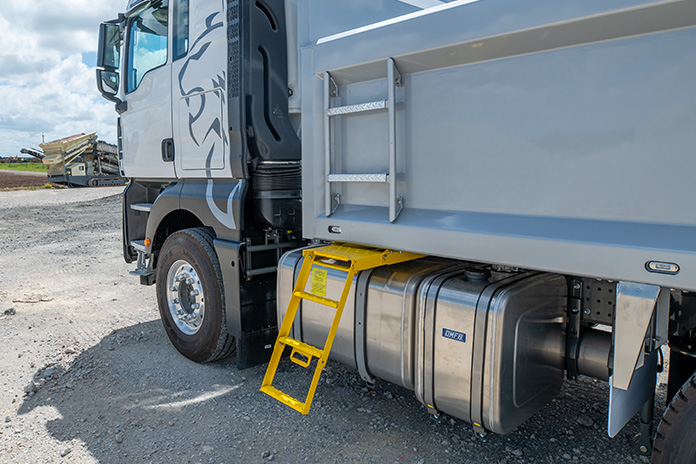

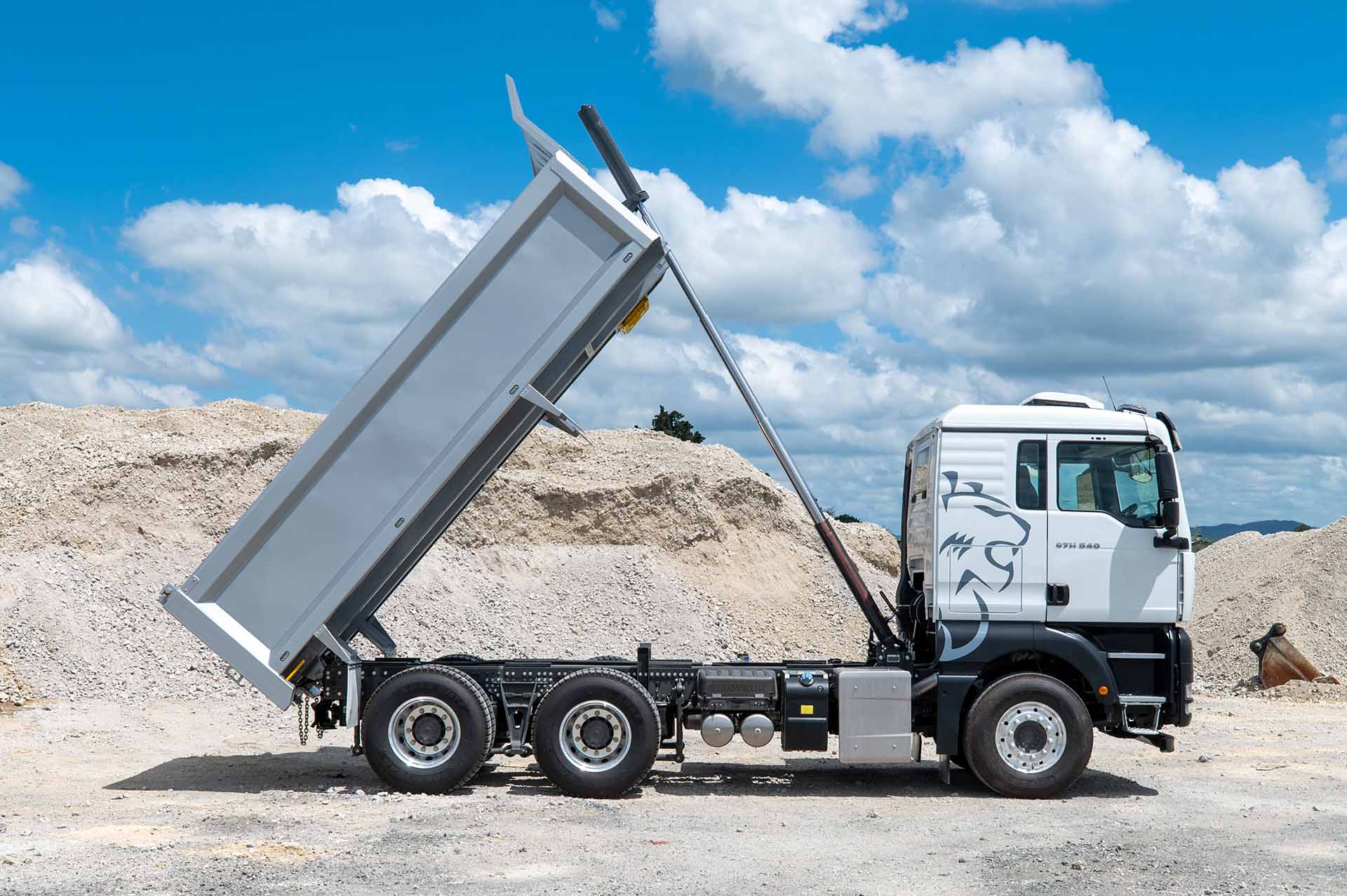

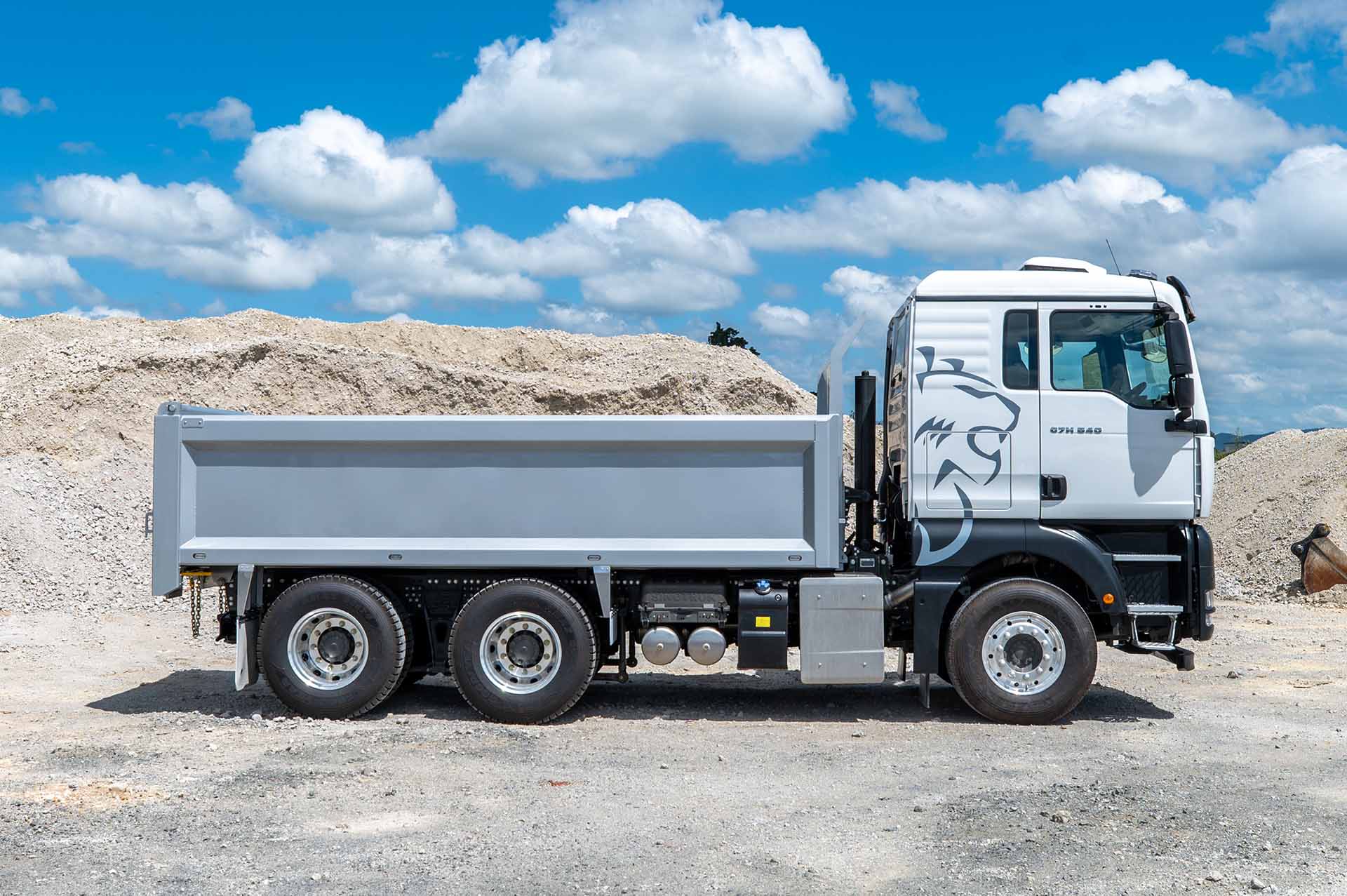

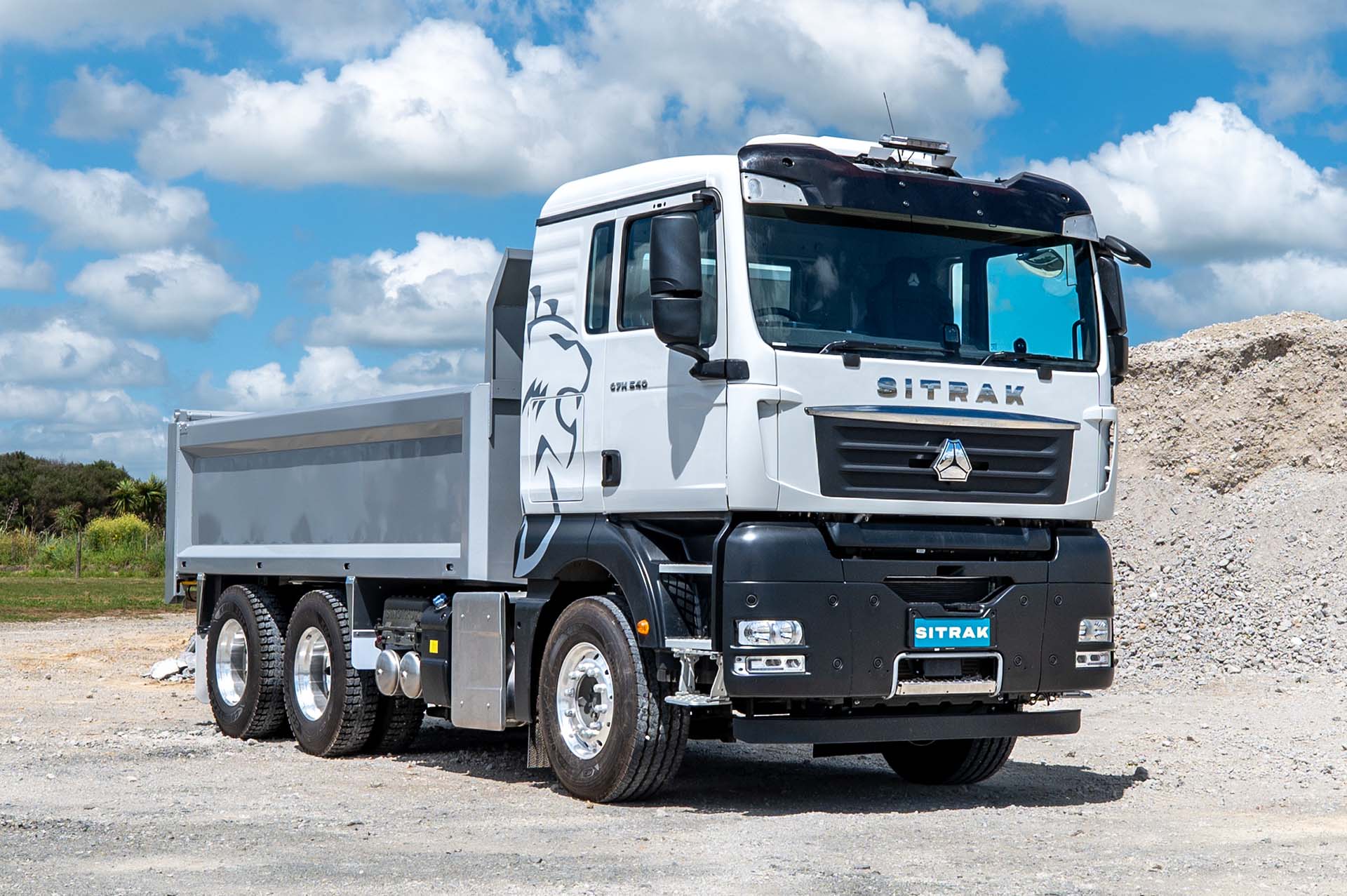

The Sitrak G7 6x4 Tipper is a high-performance, factory-built tipping solution designed for quarry, civil construction, and bulk haulage applications. Featuring a lightweight specification, advanced safety systems, air suspension, and a robust 12.5m³ Hardox steel tipper body, the G7 delivers exceptional productivity, durability, and driver comfort for demanding New Zealand conditions.

2,550Nm Torque
11,500kg Tare Weight
4,300mm Wheelbase
12 Speed ZF AMT
View full specs

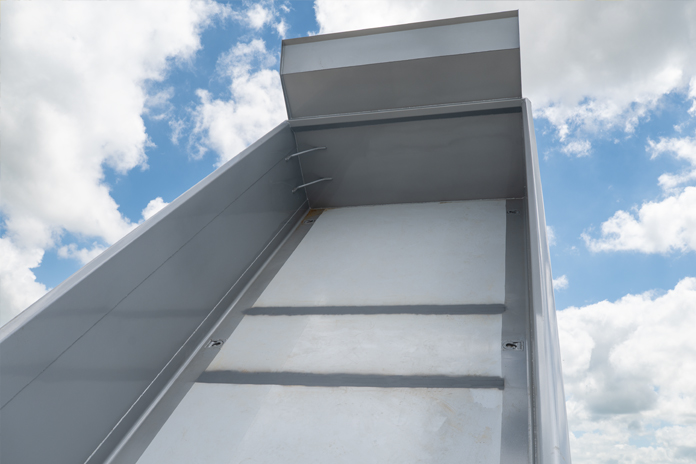

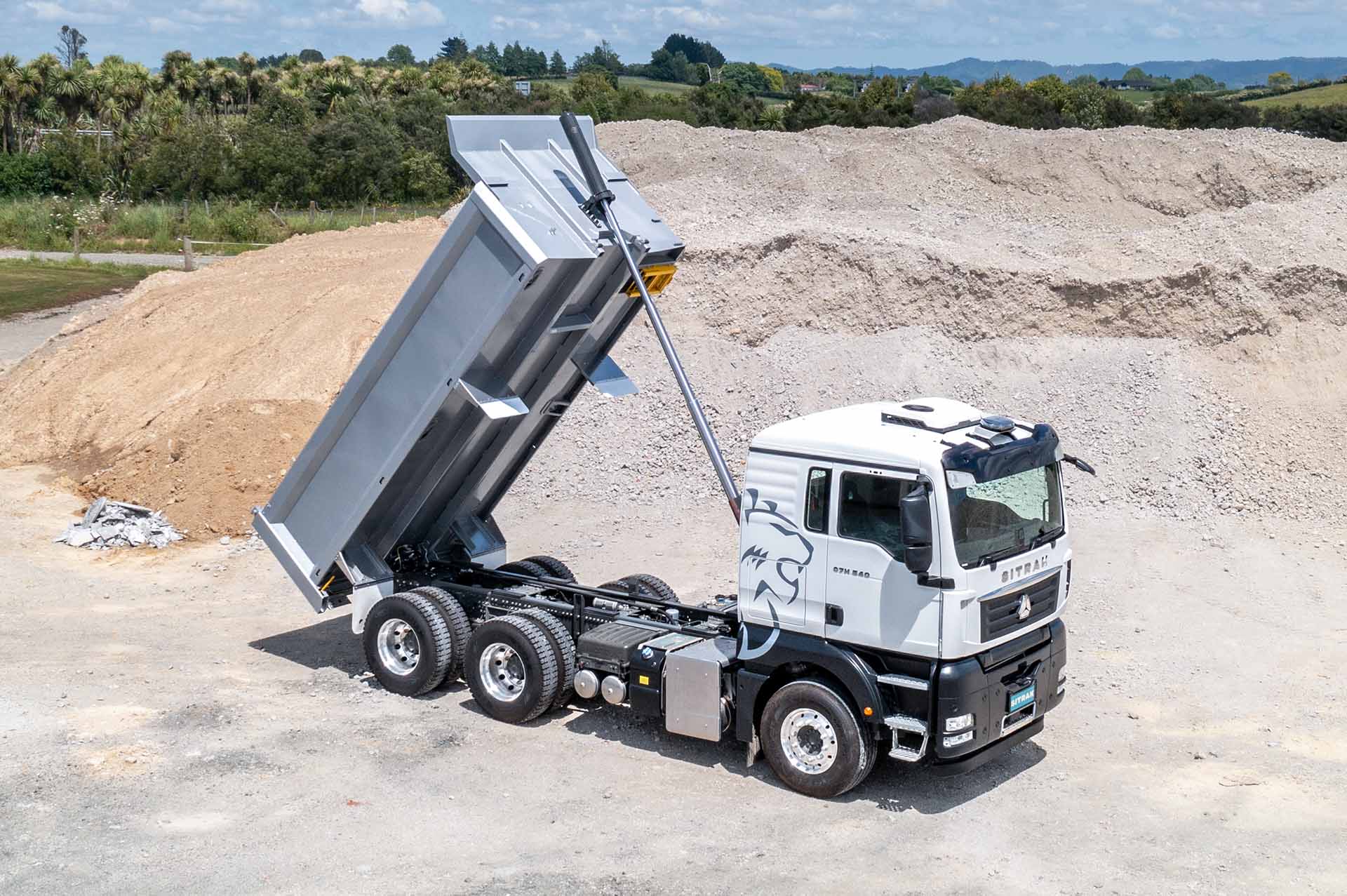

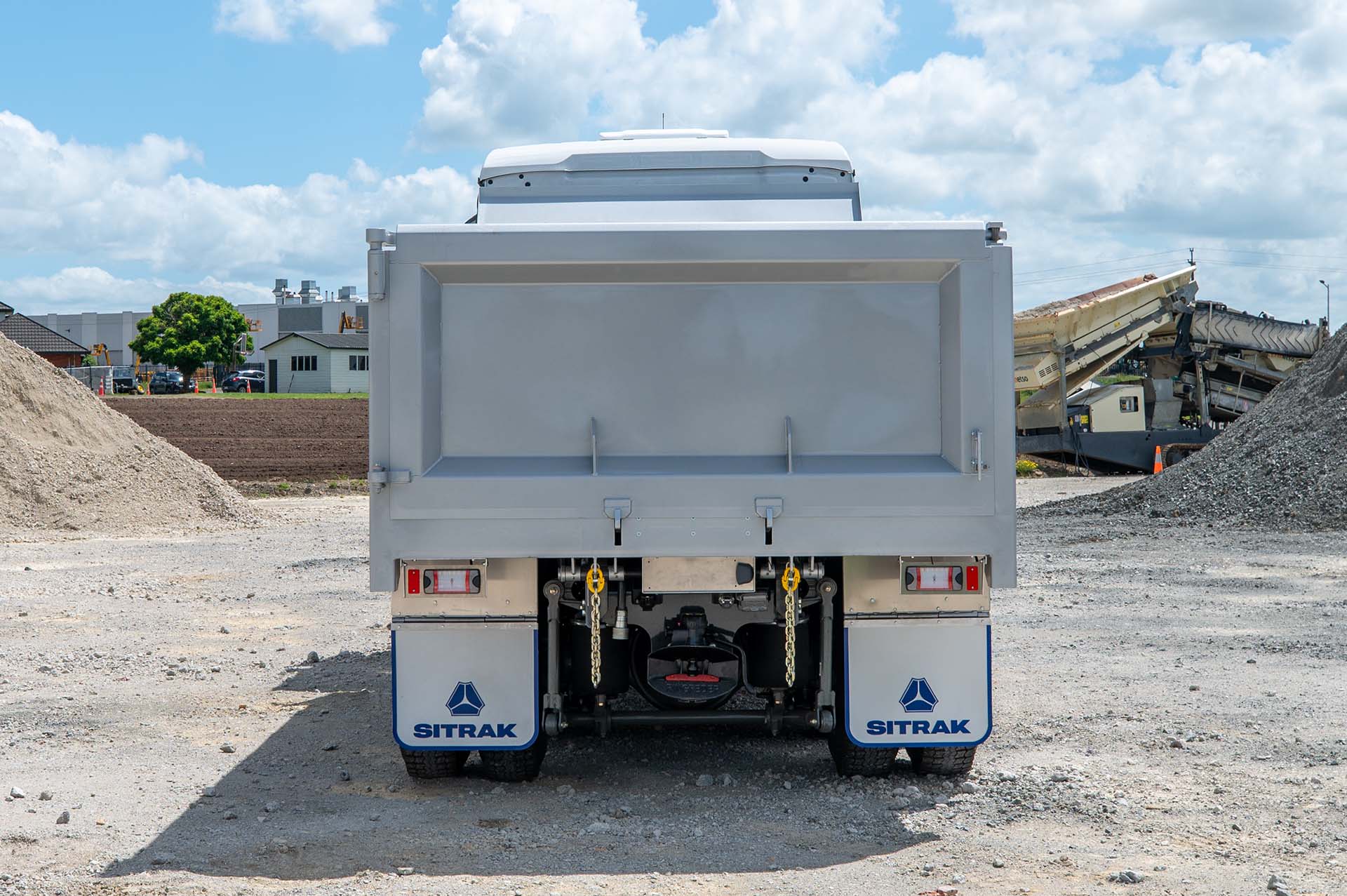

Hardox steel tipper bodies

Built to withstand the demands of quarrying, construction, demolition and bulk haulage, Sitrak Hardox tipper bodies deliver outstanding durability without unnecessary weight.

Explore the modern G7 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the G7 delivers a modern driving environment designed for performance and long-haul comfort.

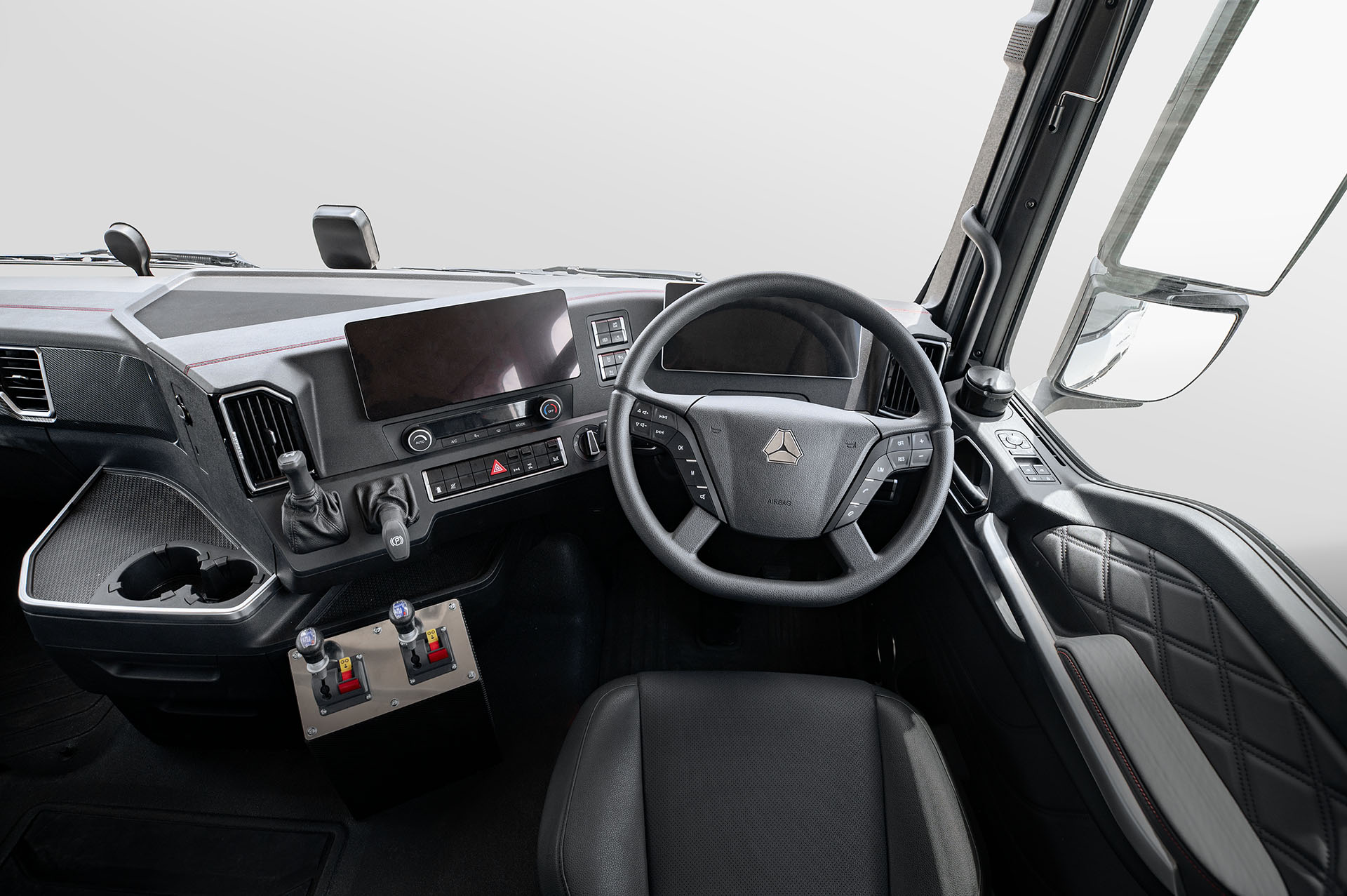

Modern driver's workspace

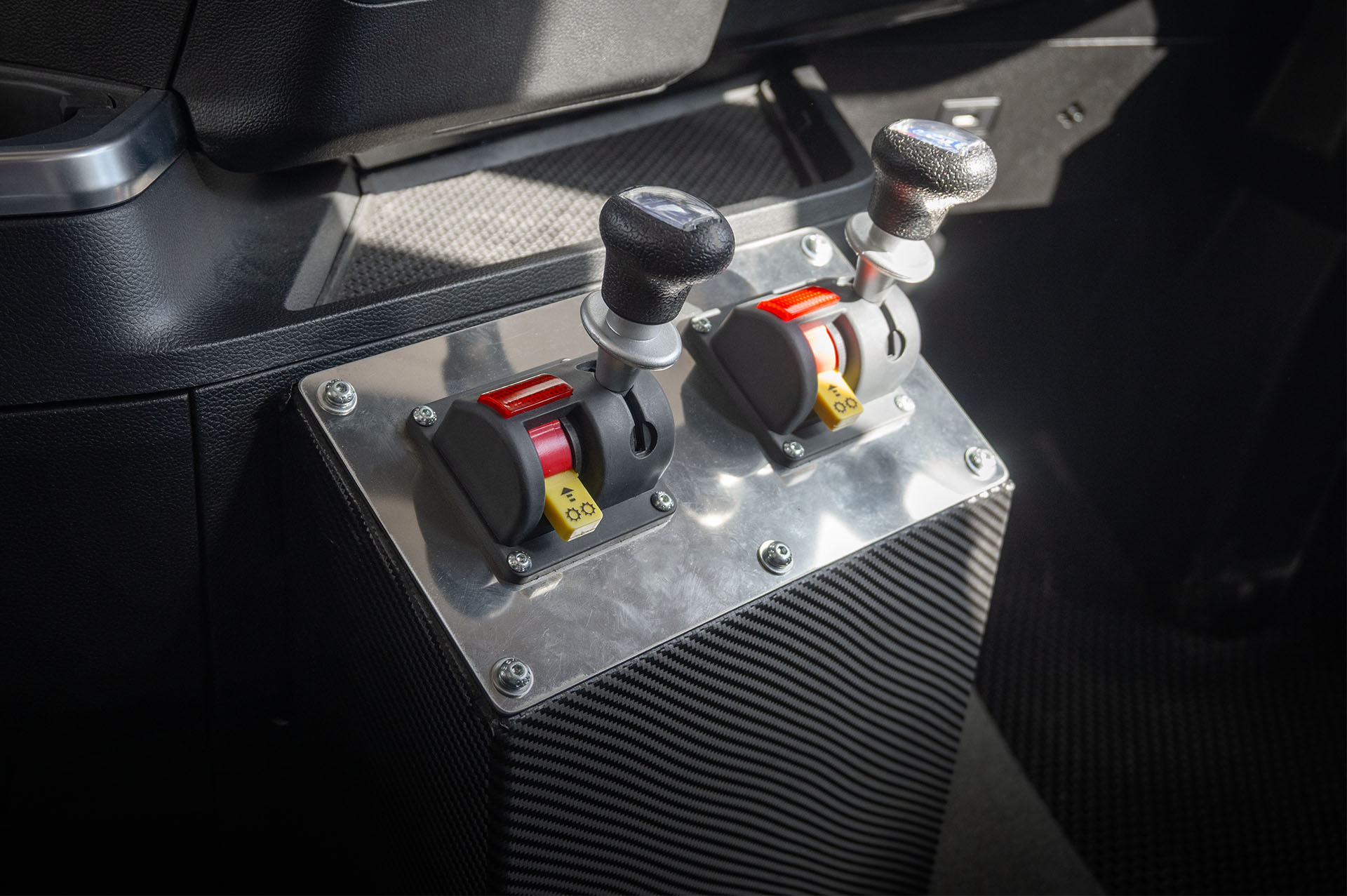

Tipper controls

360° surround view camera

Digital instrument cluster

Premium ISRI driver's seat

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort
Tipper

Truck specifications

Weights

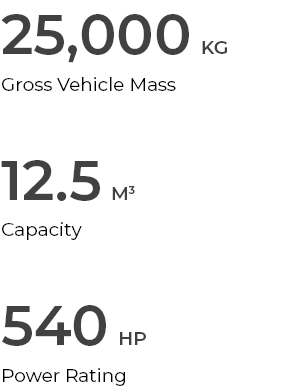

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
