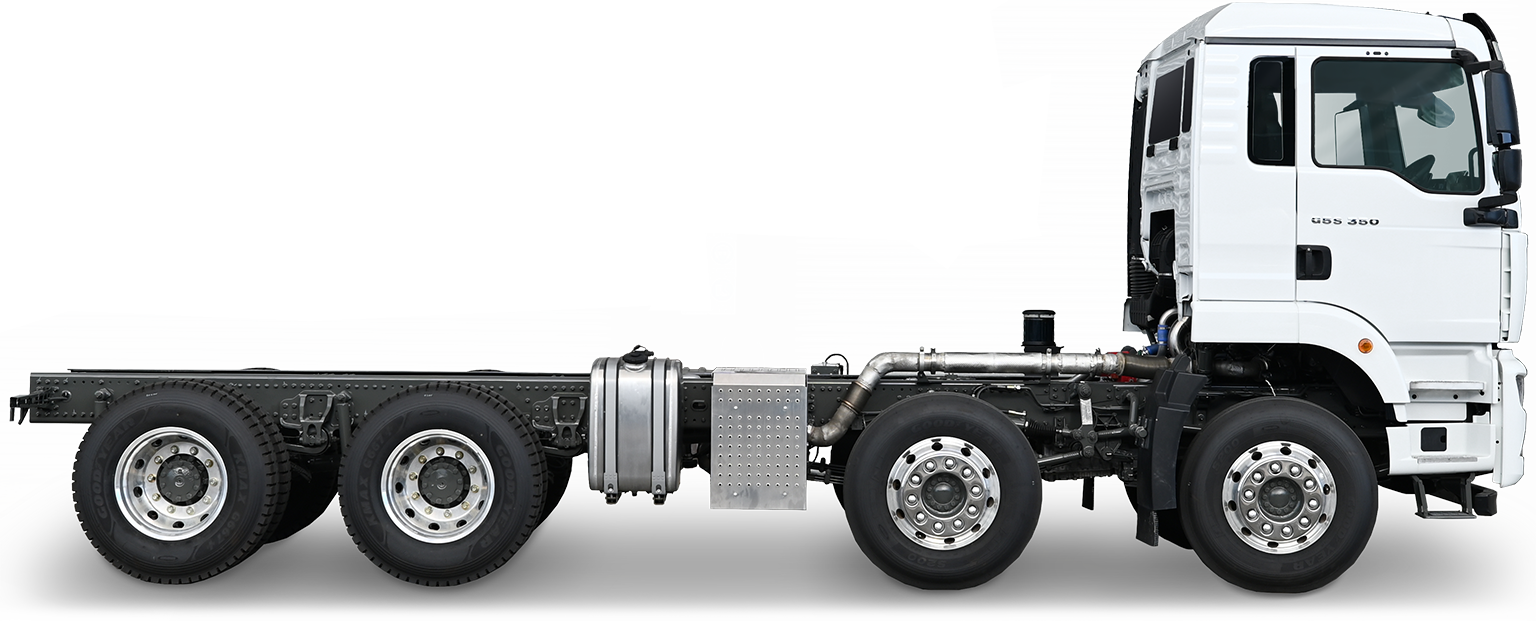

G5 8x4 chassis side view clearcut

G5 8x4 Chassis

ZZ1316N266GF1

The Sitrak G5 8x4 Chassis is a highly versatile platform designed for tipper, mixer, hooklift, tanker, waste management, and specialist body applications. With a lightweight chassis design, advanced safety systems, and a comfortable driver-focused cab, the G5 provides the ideal foundation for demanding vocational applications while delivering low operating costs and maximum productivity.

1,400Nm Torque
8,340kg Tare Weight
5,125mm Wheelbase
6-speed Allison 4430P AT

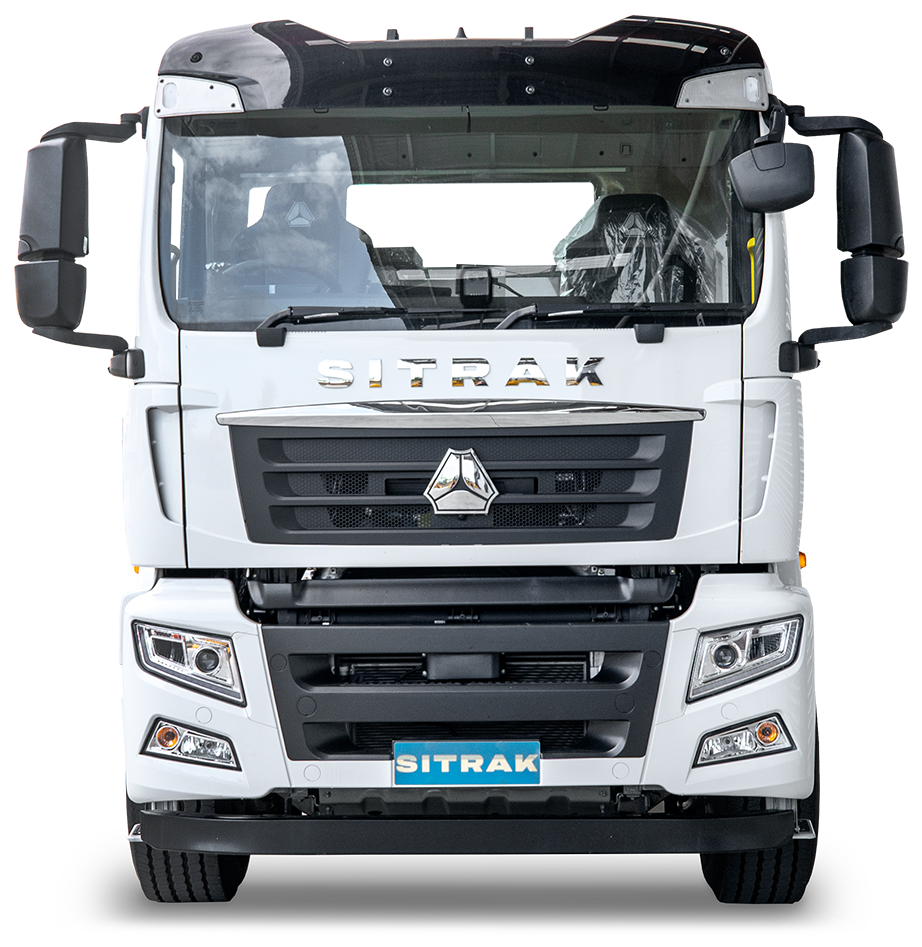

G5 8x4 chassis front clearcut
View full specs

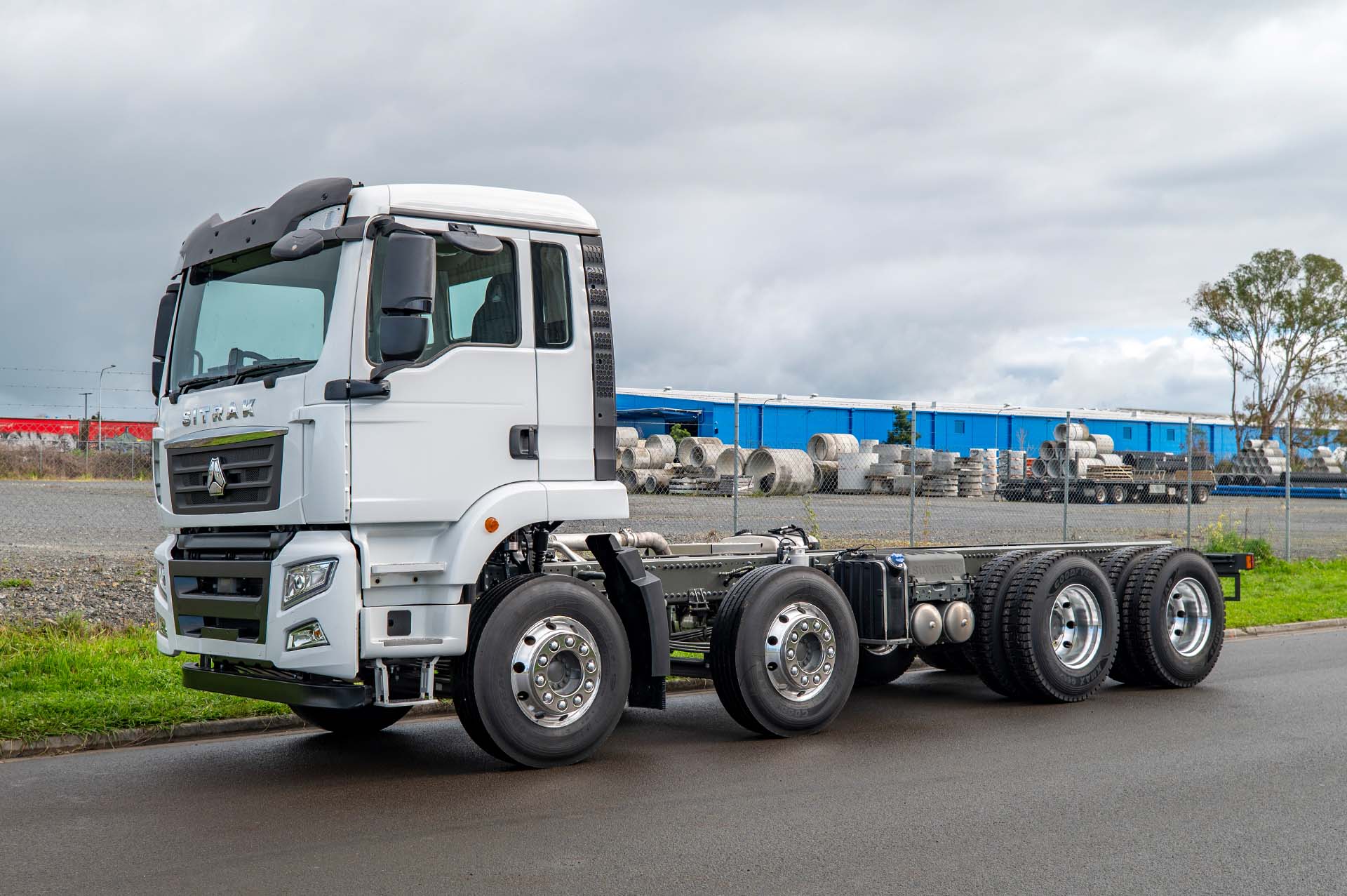

G5 8x4 chassis front angle

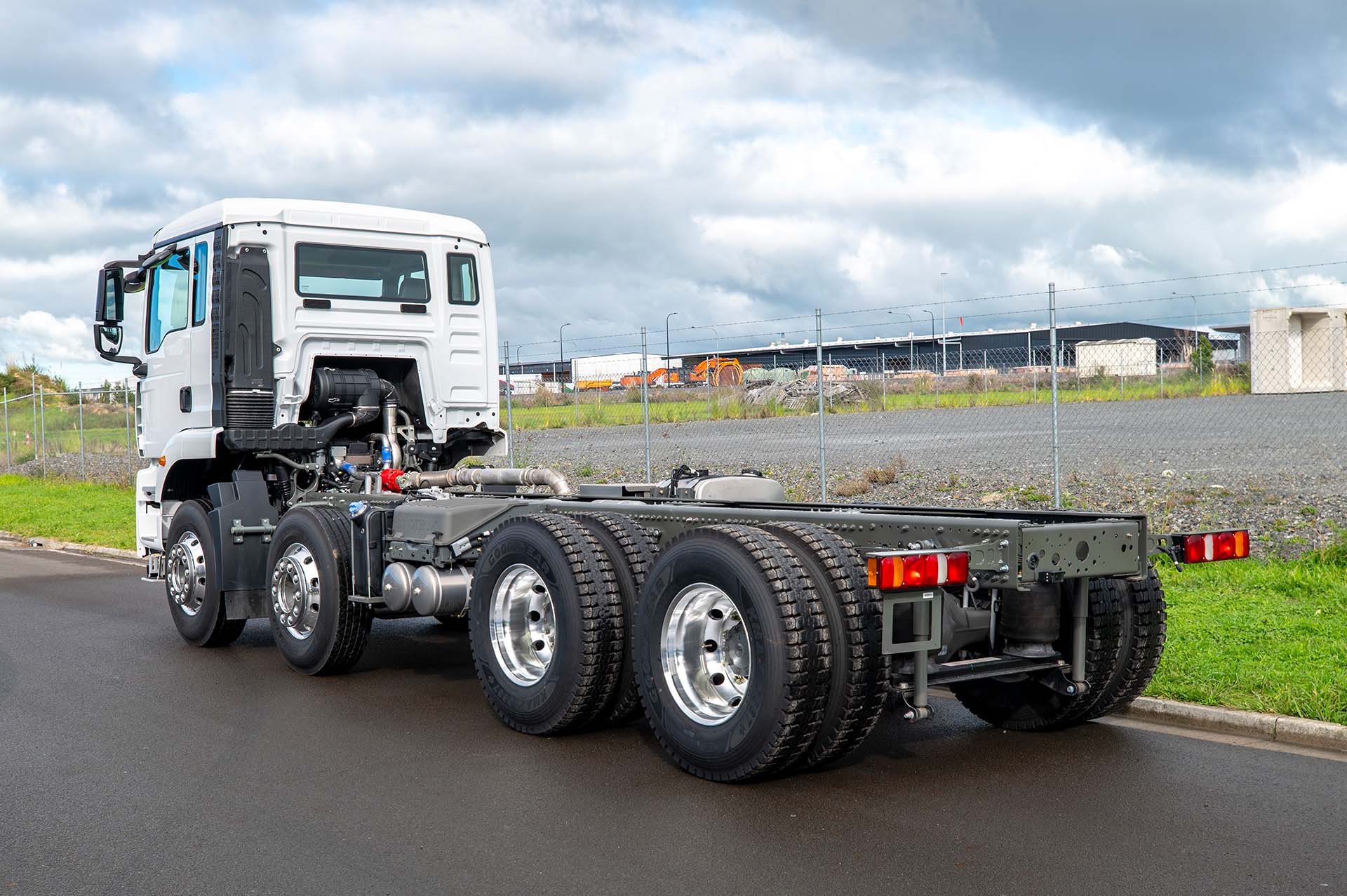

G5 8x4 chassis back angle

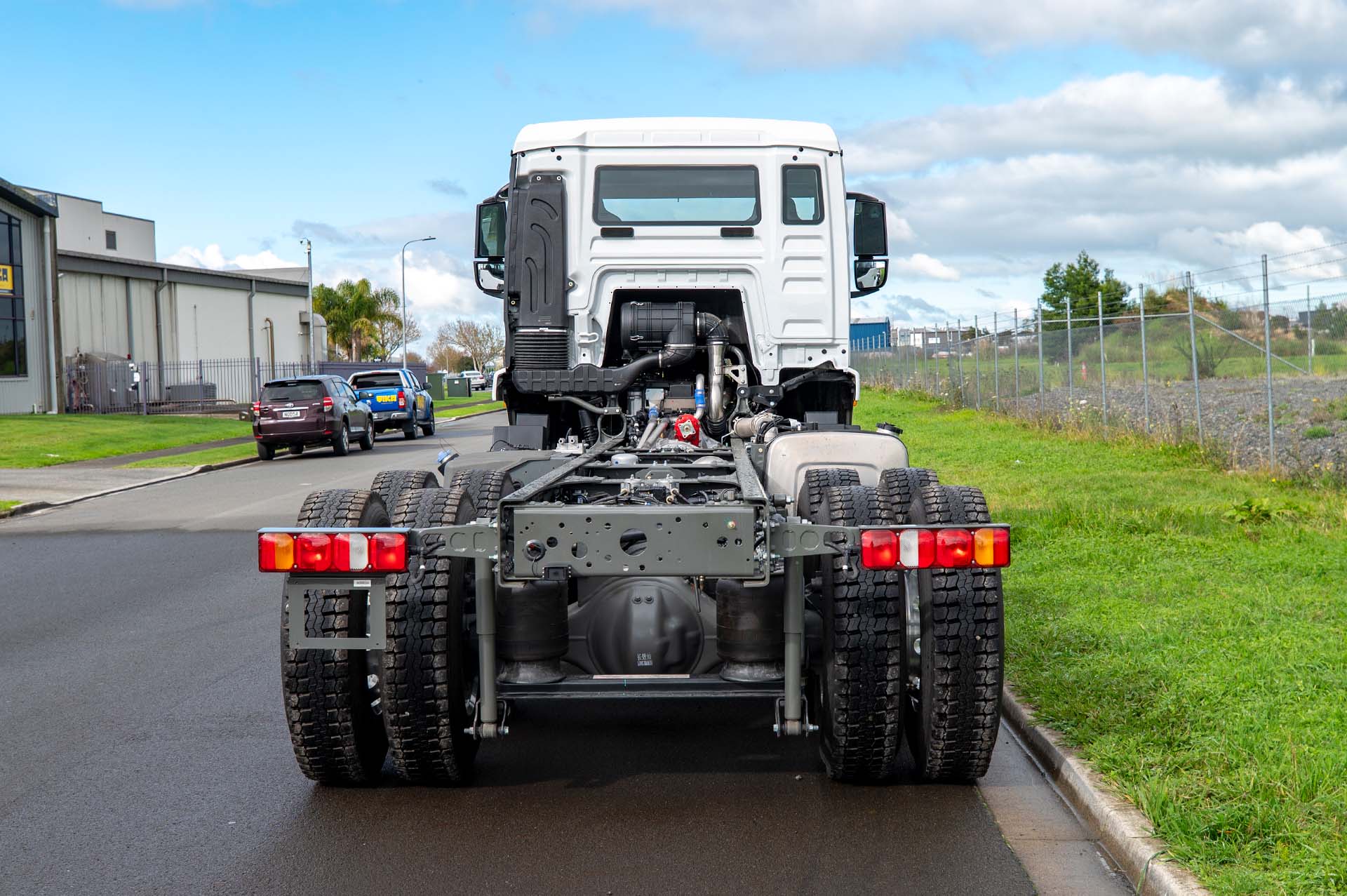

G5 8x4 chassis back

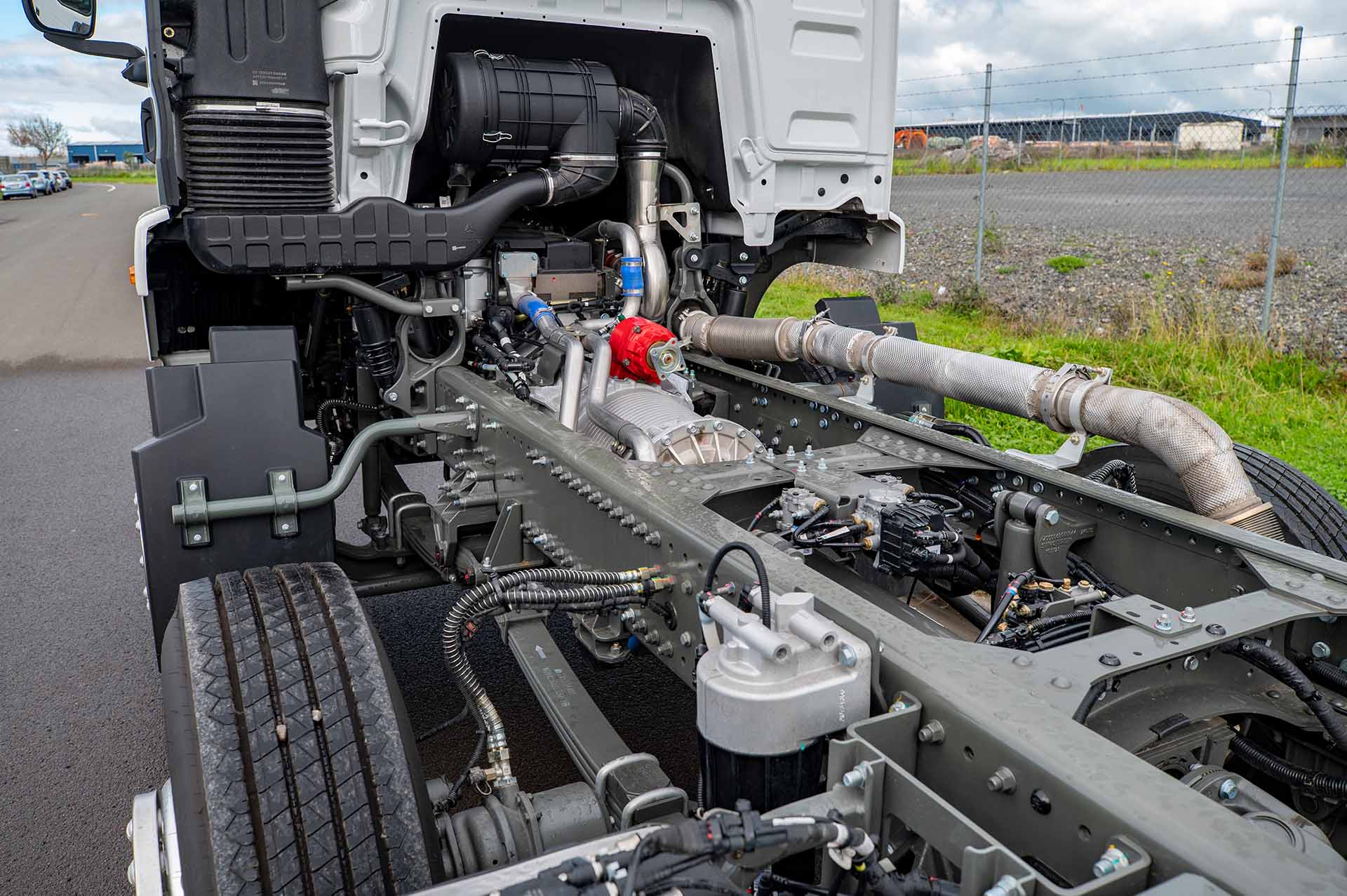

G5 8x4 chassis close up

Explore the modern G5 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the G5 delivers a modern driving environment designed for performance and long-haul comfort.
G5 8x4 chassis modern driver's workspace

Modern driver's workspace

G5 8x4 chassis digital instrument cluster

Digital instrument cluster

G5 8x4 chassis premium ISRI driver's seat

Premium ISRI driver's seat

G5 8x4 chassis 360 degree surround view cluster

360° surround view camera

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort

Truck specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
