G5 6X4 Concrete Mixer

ZZ3256N364GF1

The G5 6x4 Concrete Mixer is purpose-built for ready-mix concrete operations, combining durability, efficiency, and driver comfort in a modern Euro 6 package. Featuring a high-quality 5.3m³ Hardox steel mixer drum, advanced safety systems, air suspension, and a driver-focused cab.

1,400Nm Torque
10,400kg Tare Weight
5,125mm Wheelbase
6-speed Allison 4430P AT
View full specs

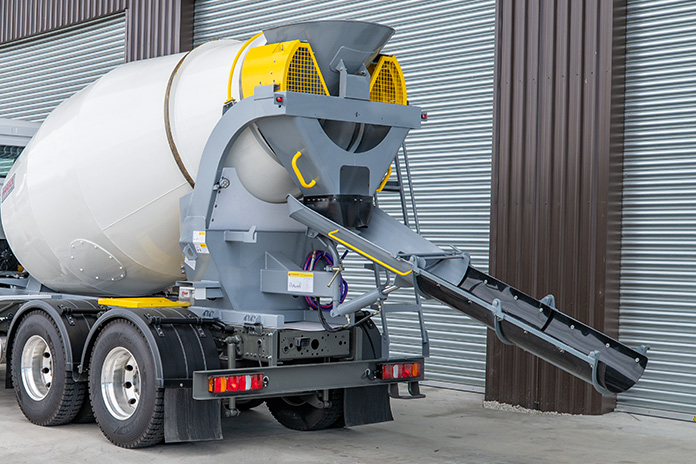

Heavy duty mixer bowl

Ensuring an even mix every time, Sitrak's concrete bowls are engineered for performance. Their robust design minimises maintenance requirements to keep you on schedule.

Explore the modern G5 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the G5 delivers a modern driving environment designed for performance and long-haul comfort.

Modern driver's workspace

Concrete mixer cab controls

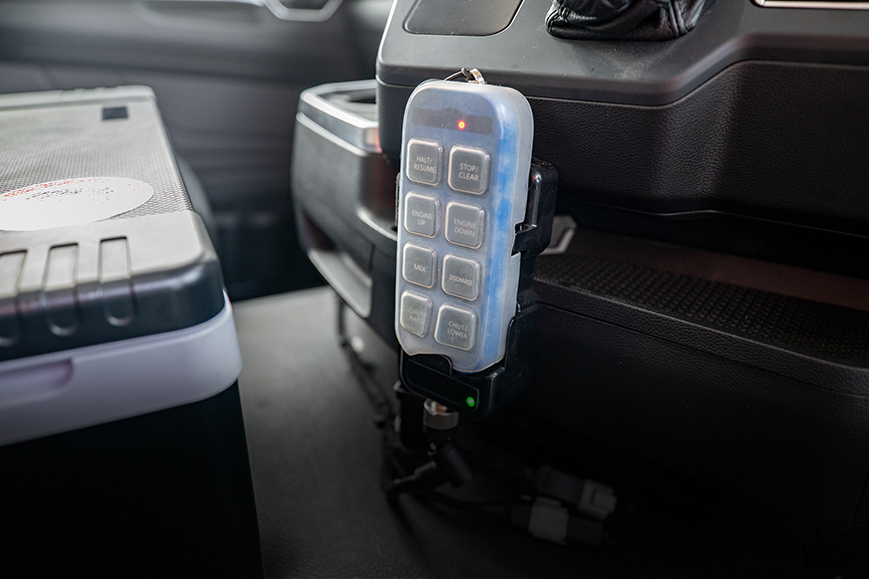

Remote mixer controls

360° surround view camera

Digital instrument cluster

Premium ISRI driver's seat

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort
Concrete Mixer

Truck specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
