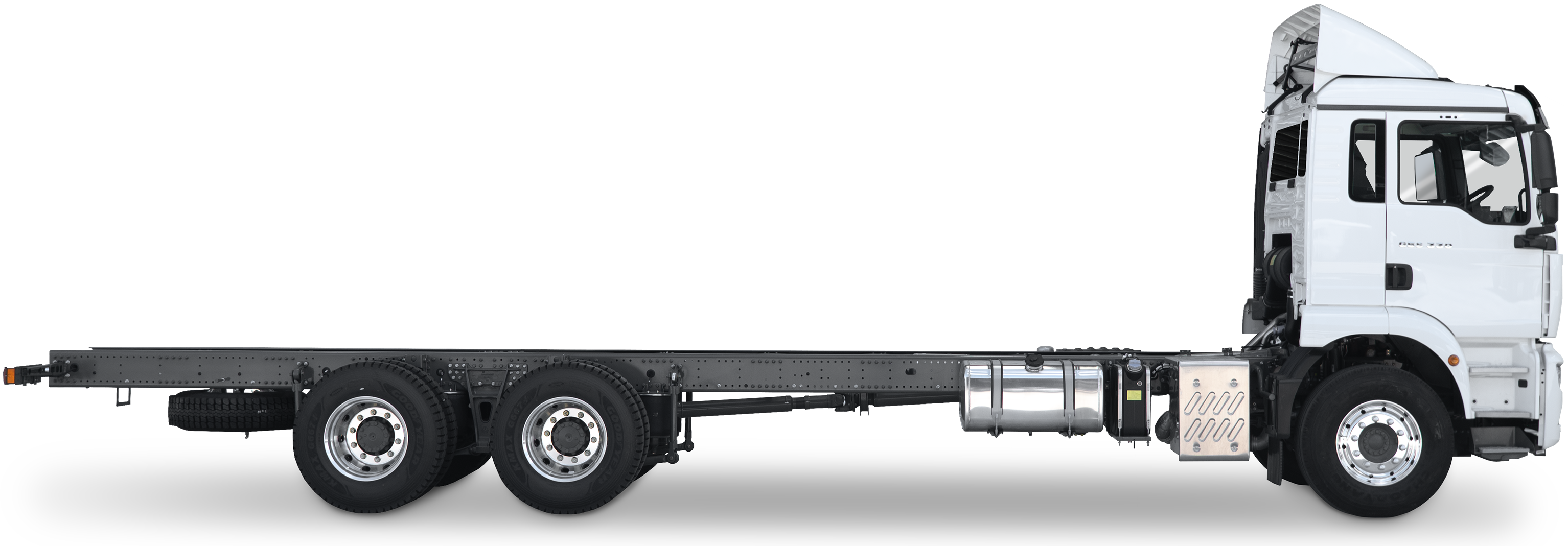

G5 6x4 chassis side view clearcut

G5 6x4 Chassis

ZZ1256N564GF1R

The Sitrak G5 6x4 Cargo Chassis is a versatile and economical platform designed for urban distribution, freight, service body, and specialist transport applications. With a lightweight chassis, advanced safety technology, and a comfortable driver-focused cab, the G5 provides the ideal foundation for a wide range of body configurations while delivering low operating costs and outstanding reliability.

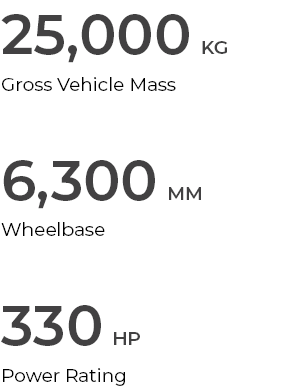

1,322Nm Torque
7,760kg Tare Weight
6,300mm Wheelbase
6-speed Allison 3200 AT
G5 8x4 concrete mixer front view clearcut
View full specs
G5 8x4 concrete mixer aerial side view
G5 8x4 concrete mixer front angle
G5 8x4 concrete mixer back angle
G5 8x4 concrete mixer side angle
G5 8x4 concrete mixer back skeleton
G5 8x4 concrete mixer skeleton

Explore the modern G5 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the G5 delivers a modern driving environment designed for performance and long-haul comfort.
G5 8x4 concrete mixer modern driver's workspace

Modern driver's workspace

G5 8x4 concrete mixer premium ISRI driver's seat

Premium ISRI driver's seat

G5 8x4 concrete mixer digital instrument cluster

Digital instrument cluster

G5 8x4 concrete mixer 360 degree surround view

360° surround view camera

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort

Truck specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

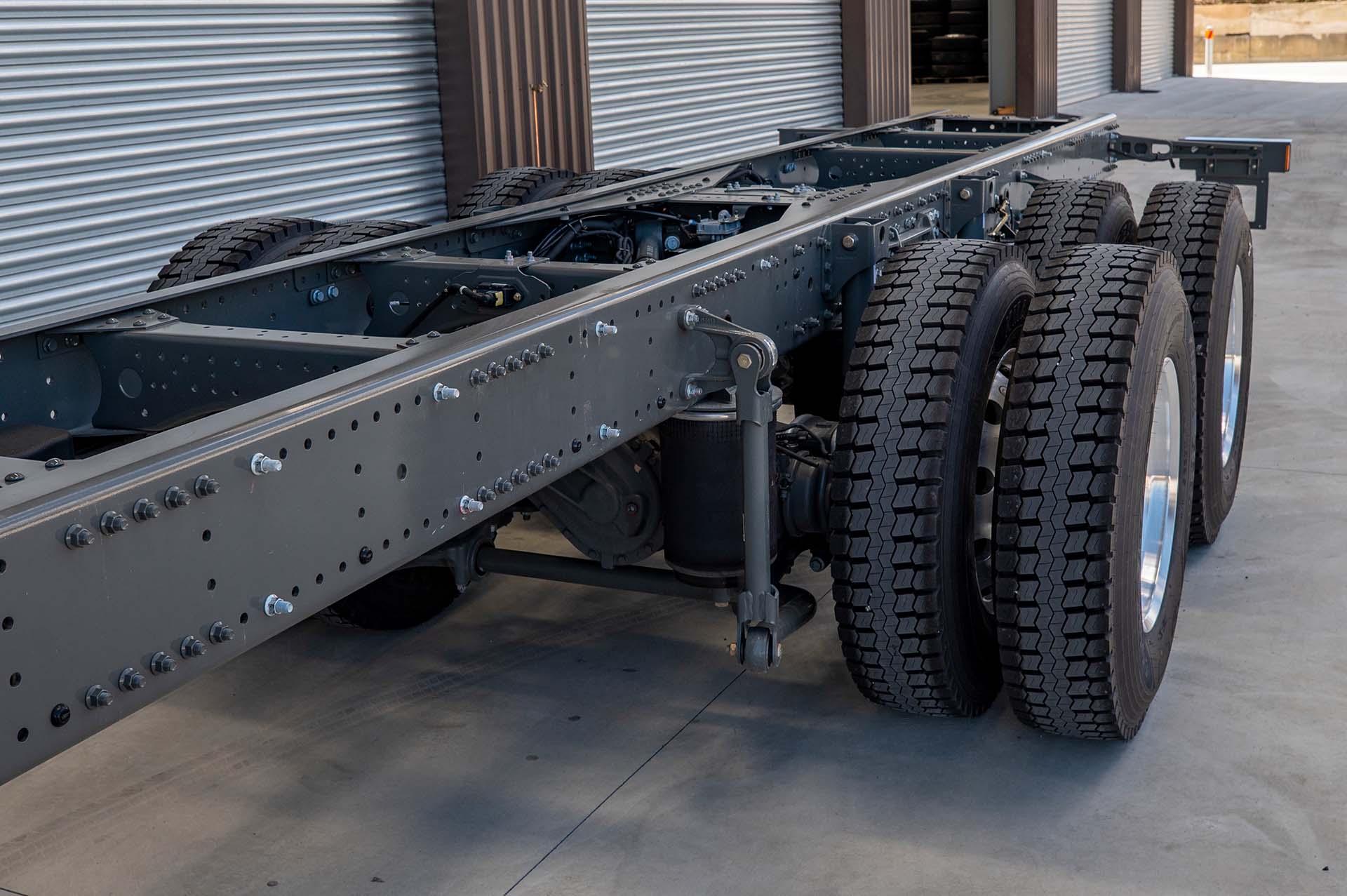

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
