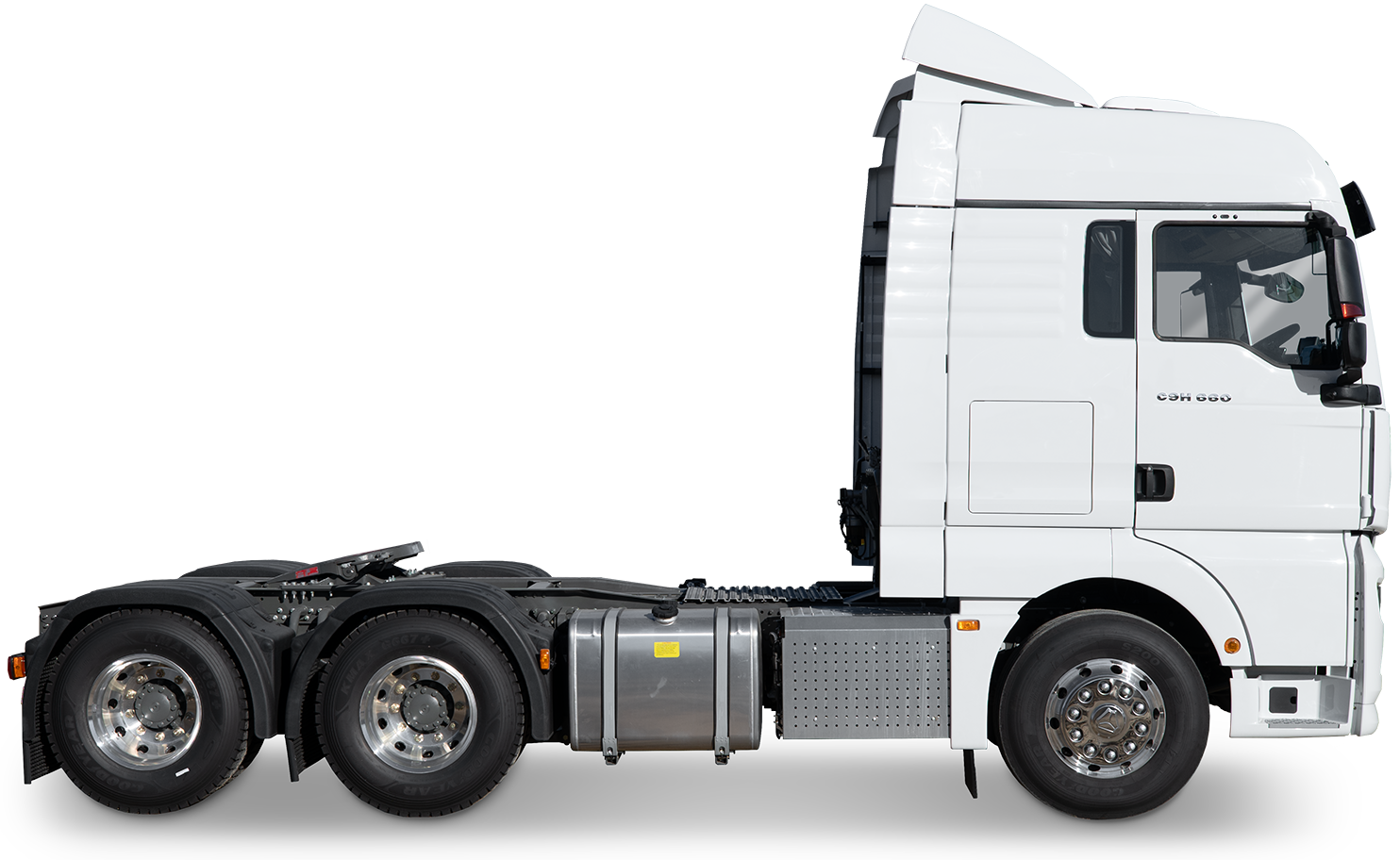

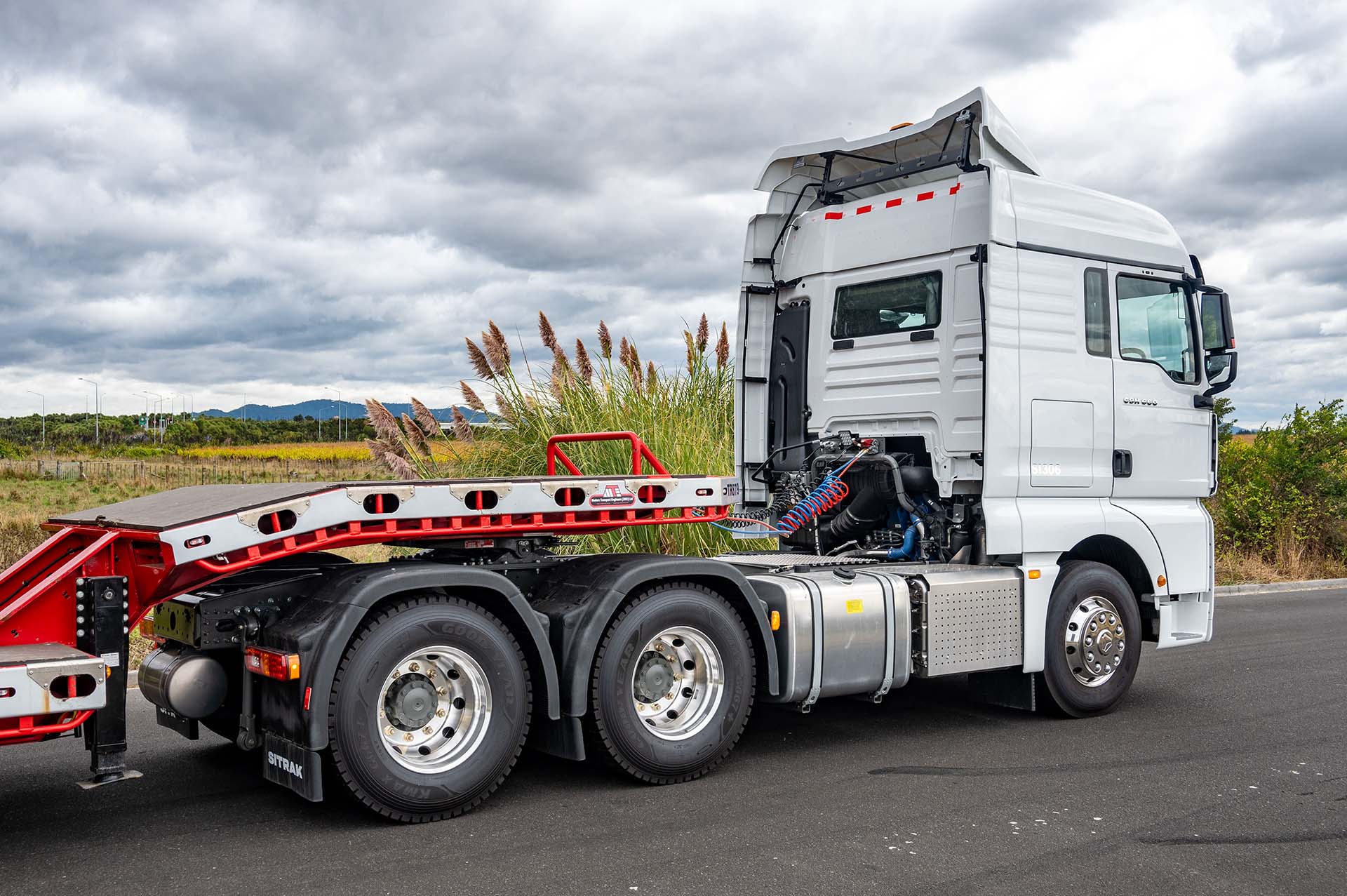

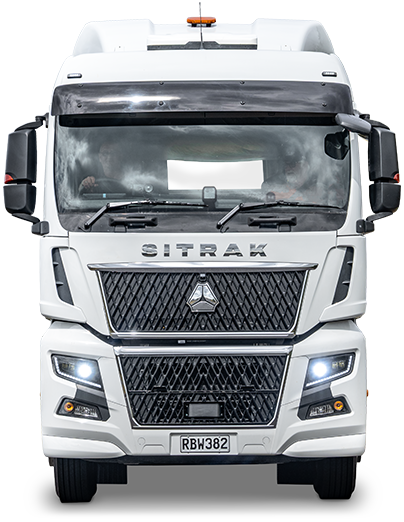

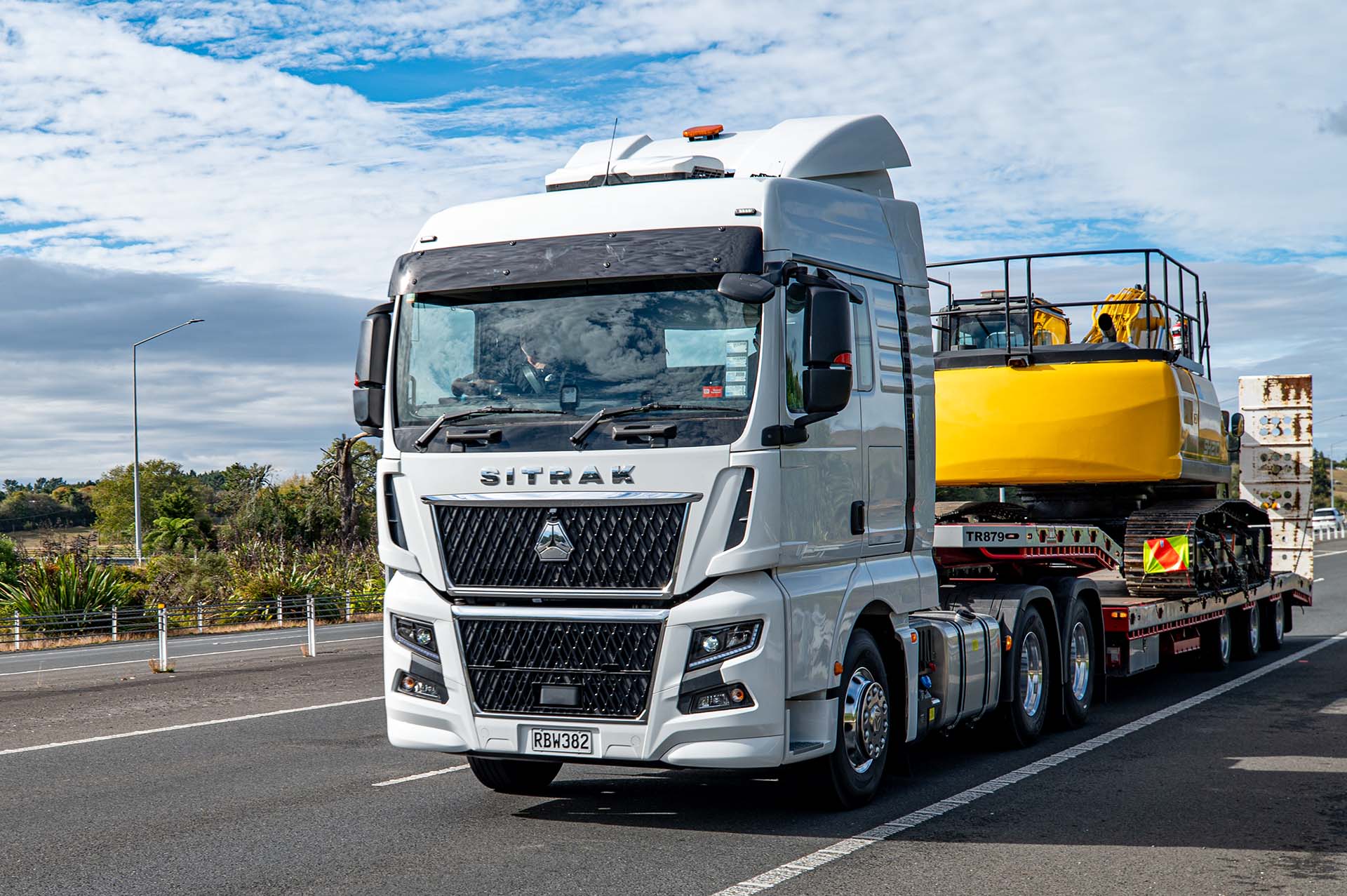

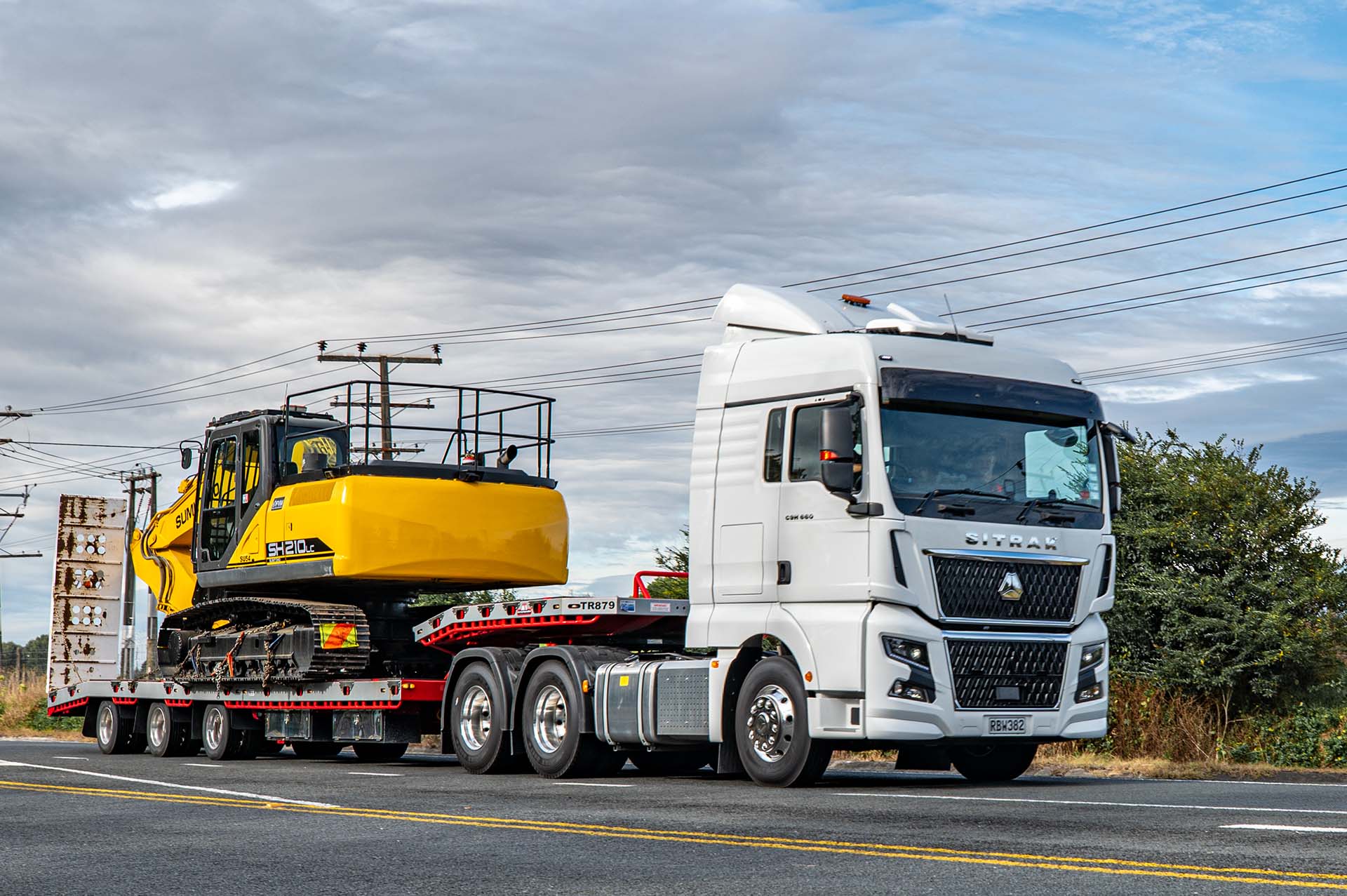

C9 6X4 Tractor Unit

ZZ4256Y344LF1KR

The Sitrak C9 6x4 Tractor Unit is the flagship of the Sitrak range, engineered for heavy linehaul and high-productivity transport applications. Featuring a spacious stand-up cab with twin bunks, advanced safety systems including ACC, AEBS and 360° surround view, the C9 is built to maximise productivity on New Zealand’s toughest transport routes.

3,200Nm Torque
9,800kg Tare Weight
4,100mm Wheelbase
12 Speed ZF AMT
View full specs

Explore the modern C9 interior

Featuring ventilated ISRI seats, wide digital dash, top-mounted cooler and refined interior trim, the C9 delivers a modern driving environment designed for performance and long-haul comfort.

Modern driver's workspace

Spacious stand-up cab with twin bunks

Slide-out 20L refrigerator

360° surround view camera

Digital instrument cluster

ECAS Remote control unit

Specifications

Download Full Specifications
Overview
Performance
Safety & Comfort

Truck specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah

Mixer specifications

Weights

‍GVM: 25,000kg

Max load of two axles: (Front) 7000kg

‍Max load of two axles: (Rear) 9000kg / 9000kg

Capability

Max speed: 100km/h

Min turning diameter: 18m

Max climb gradient: 25%

‍Fuel Tank Capacity: 300L

Cabin

Model: G5S-M

‍Seats: 2

‍Cab turning radius: 2410mm

Engine

Model: MC07H.33-61

Displacement: 7.36L

Power Rating: 305HP

Max Torque: 1250 / (1200~1600)

Transmission

Model: Allison 3200P

Frame

Model: Ladder frame

Main beam cross-section: 280mm × 80mm × 8mm

Width of frame assembly: (Front) 940mm

Width of frame assembly: (Rear) 850mm

‍

Driving Axle

Model: MCY11BES

Redactor ratio: 5.29

‍Differential Lock: Diff lock + Cross Locks

Front Axle

Model: VPD71DS

Steering Gear

‍Model: Ball circle

Ratio: 22.2~26.2:1

Max pressure of pump: 20,000kPa

Braking System

‍Working pressure: 1250kPa

‍Drive braking type: Dual circuit compressed air brake

‍Brake power adjust type: EBS + ESC + HSA

‍Parking brake type: Spring stored energy air cut brake

Electrics

‍Circuit type: Dual

Voltage: 24V

Generator power: 3.08kW

Batteries: 2 x 12 / 180Ah
